The correct answer is 173.10 Bags of Cement. I only needthe full solution with illustrations.

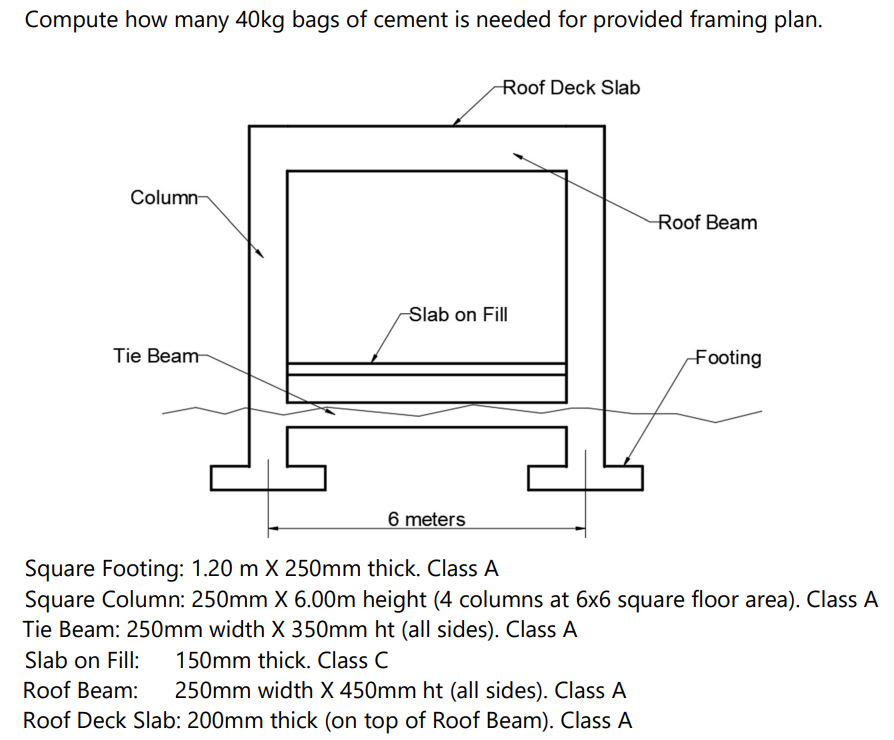

The Correct Answer Is 173 10 Bags Of Cement I Only Need The Full Solution With Illustrations 1 (115.77 KiB) Viewed 63 times

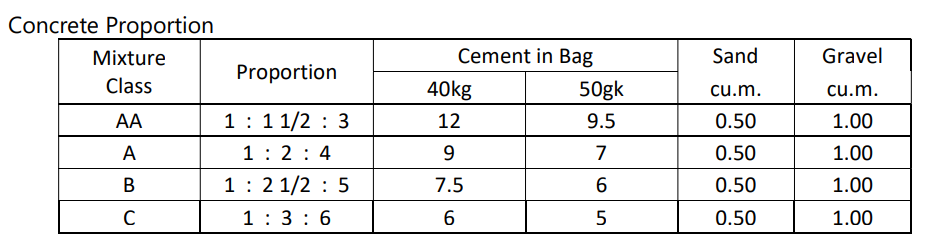

The Correct Answer Is 173 10 Bags Of Cement I Only Need The Full Solution With Illustrations 2 (37.69 KiB) Viewed 63 times
Compute how many 40kg bags of cement is needed for provided framing plan. Column- Tie Beam Roof Deck Slab Slab on Fill Roof Beam Footing 6 meters Square Footing: 1.20 m X 250mm thick. Class A Square Column: 250mm X 6.00m height (4 columns at 6x6 square floor area). Class A Tie Beam: 250mm width X 350mm ht (all sides). Class A Slab on Fill: 150mm thick. Class C 250mm width X 450mm ht (all sides). Class A Roof Beam: Roof Deck Slab: 200mm thick (on top of Roof Beam). Class A
Concrete Proportion Mixture Class AA A B C Proportion 1 1 1/2 3 1: 2:4 1 2 1/2 5 1:36 Cement in Bag 40kg 12 9 7.5 6 50gk 9.5 7 6 5 Sand cu.m. 0.50 0.50 0.50 0.50 Gravel cu.m. 1.00 1.00 1.00 1.00
