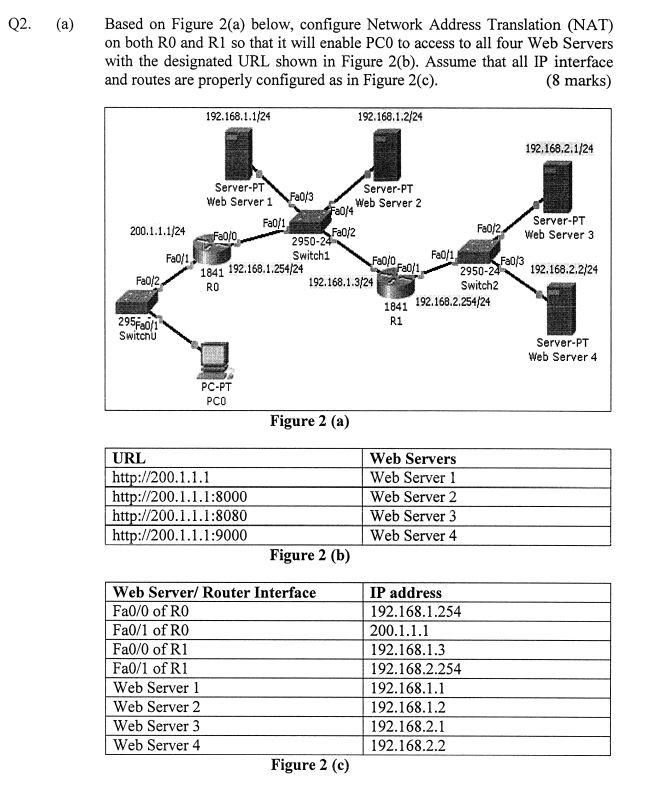

Q2. (a) Based on Figure 2(a) below, configure Network Address Translation (NAT) on both R0 and R1 so that it will enable PCO to access to all four Web Servers with the designated URL shown in Figure 2(b). Assume that all IP interface and routes are properly configured as in Figure 2(c). (8 marks) 192.168.1.1/24 192.168.1.2/24 192.168.2.1/24 Server-PT Web Server 1 Fa0/3 Server-PT Web Server 2 Fa0/1 200.1.1.1/24 Server-PT Web Server 3 Fa0/0, Fa0/1, Fa0/0, 1841 192.168.1.254/24 192.168.2.2/24 Fa0/2 RO 295F80/1 SwitchU Server-PT Web Server 4 PC-PT PCO URL
