Question 1 [10 marks): K A unity feedback system with a forward path transfer function KG(s) 1. Find the starting and en

Post by answerhappygod »

Question 1 10 Marks K A Unity Feedback System With A Forward Path Transfer Function Kg S 1 Find The Starting And En 1
Question 1 10 Marks K A Unity Feedback System With A Forward Path Transfer Function Kg S 1 Find The Starting And En 1 (12.68 KiB) Viewed 15 times
Question 1 10 Marks K A Unity Feedback System With A Forward Path Transfer Function Kg S 1 Find The Starting And En 2
Question 1 10 Marks K A Unity Feedback System With A Forward Path Transfer Function Kg S 1 Find The Starting And En 2 (12.68 KiB) Viewed 15 times

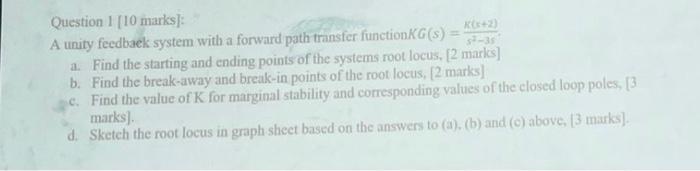

Question 1 [10 marks): K A unity feedback system with a forward path transfer function KG(s) 1. Find the starting and ending points of the systems root locus, [2 marks) b. Find the break-away and break-in points of the root locus, [2 marks) c. Find the value of K for marginal stability and corresponding values of the closed loop poles, [3 marks) d. Sketch the root locus in graph sheet based on the answers to (a), (b) and (c) above, [3 marks)
