CTU WEBSITE Name Date of birth Surname CONTINUUM MECHANICS The closed vessel is filled with air of mass m. In the vessel

[answerhappygod]

Ctu Website Name Date Of Birth Surname Continuum Mechanics The Closed Vessel Is Filled With Air Of Mass M In The Vessel 1 (42.45 KiB) Viewed 20 times

Ctu Website Name Date Of Birth Surname Continuum Mechanics The Closed Vessel Is Filled With Air Of Mass M In The Vessel 2 (33.14 KiB) Viewed 20 times

Ctu Website Name Date Of Birth Surname Continuum Mechanics The Closed Vessel Is Filled With Air Of Mass M In The Vessel 3 (27.95 KiB) Viewed 20 times

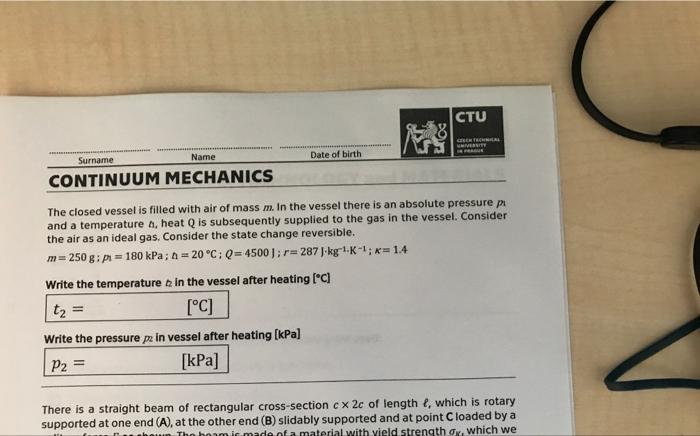

CTU WEBSITE Name Date of birth Surname CONTINUUM MECHANICS The closed vessel is filled with air of mass m. In the vessel there is an absolute pressure pe and a temperature a, heat is subsequently supplied to the gas in the vessel. Consider the air as an ideal gas. Consider the state change reversible. m=250 g; p = 180 kPa ; n = 20°C: Q=4500); r= 287 kg 1-K-1;*= 1.4 Write the temperature in the vessel after heating [°C] t2 = [°C] Write the pressure pe in vessel after heating [kPa] P2 = [kPa] There is a straight beam of rectangular cross-section c x 2c of length, which is rotary supported at one end (A), at the other end (B) slidably supported and at point Cloaded by a Tho hoam is made of a material with yield strength o which we

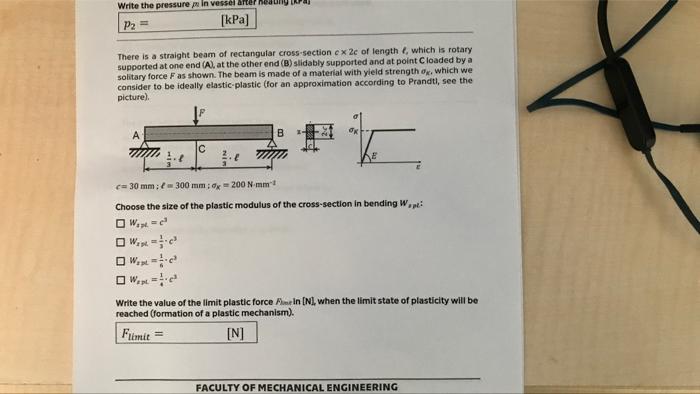

Write the pressure puin vessel and P2 [kPa] There is a straight beam of rectangular cross-section ex 2c of length, which is rotary supported at one end (A) at the other end (B) slidably supported and at point Cloaded by a solitary force F as shown. The beam is made of a material with yield strength ox, which we consider to be ideally elastic plastic (for an approximation according to Prandt, see the picture) 1 A с 2.4 <= 30 mm: 300 mm x 200 N mm Choose the size of the plastic modulus of the cross-section in bending W. We W, W .. Write the value of the limit plastic force mein [N], when the limit state of plasticity will be reached (formation of a plastic mechanism). Filmit = [N] FACULTY OF MECHANICAL ENGINEERING

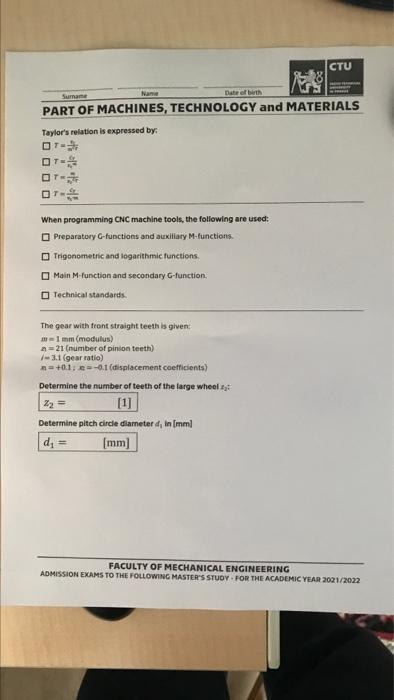

CTU Na Suman Date of birth PART OF MACHINES, TECHNOLOGY and MATERIALS Taylor's relation is expressed by: OT T OT- When programming CNC machine tools, the following are used: Preparatory G-functions and auxiliary M-functions. Trigonometric and logarithmic functions. Main M-Function and secondary G-function. Technical standards. The gear with front straight teeth is given m1 mm (modulus) 2 = 21 (number of pinion teeth) 1-3.1 (gear ratio) = +0.1 = -0.1 (displacement coefficients) Determine the number of teeth of the large wheel, 22 Determine pitch cirde diameter , in [mm] [mm] FACULTY OF MECHANICAL ENGINEERING ADMISSION EXAMS TO THE FOLLOWING MASTER'S STUDY FOR THE ACADEMIC YEAR 2021/2022
