GYROSCOPIC EFFECT QUESTION:
An aircraft taking off at a speed of450 km/hr while the engine
rotates 12,000 rpm
counter clockwise looking from the front-end. The rotary engine and
propeller of the plane has
a mass of 400 kg and a radius of gyration of 0.3 m. If each of the
bolts attaching the engine to
the wing can take 2 kN axial force and 2.5 kN shear force,
determine the following.
i. The gyroscopic couple and states its effects on the
aircraft.
ii. Smallest radius of curvature that the aircraft can climb,𝜌𝑐 and
turn,𝜌𝑇

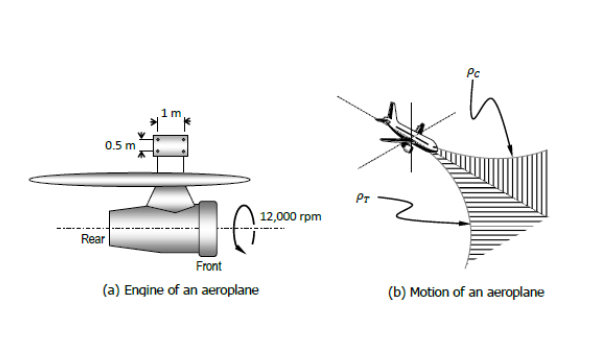

Gyroscopic Effect Question An Aircraft Taking Off At A Speed Of450 Km Hr While The Engine Rotates 12 000 Rpm Counter Cl 1 (33.09 KiB) Viewed 21 times
PC 1 m 0.5 m PT 12,000 rpm Rear Front (a) Engine of an aeroplane (b) Motion of an aeroplane
