A capacitor with C=1.50.19^-5 is connected as shown in the
figure to a resistor R=980 ohms and to an emf source with E=18.0V
and negligible internal resistance.
nitially the capacitor is discharged and the switch S is in
position 1 then the switch is brought to position 2, so that the
capacitor starts to charge when the switch has been in position 2
for 10.0ms it is brought back to position 1 for the capacitor to
start discharging

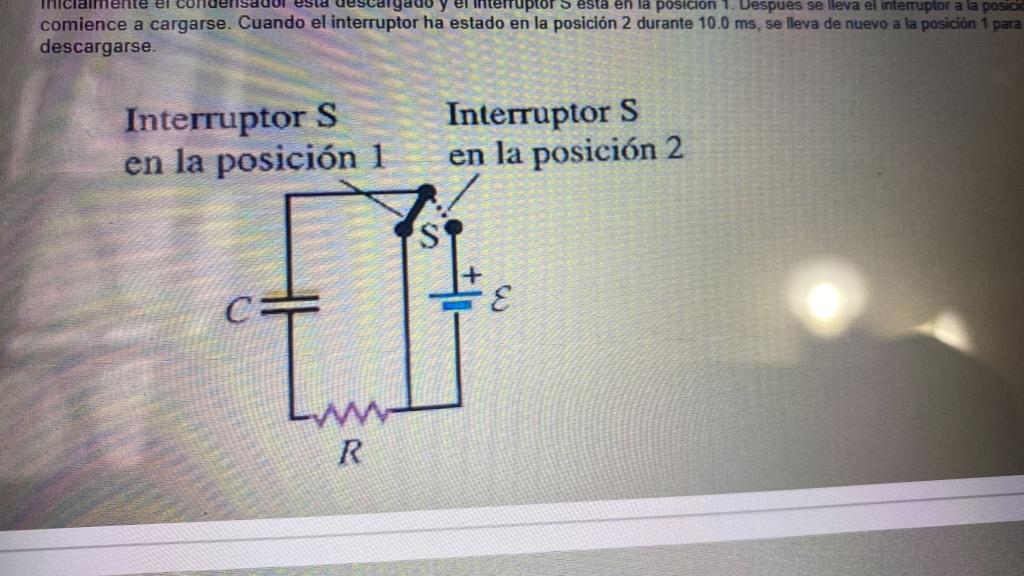

A Capacitor With C 1 50 19 5 Is Connected As Shown In The Figure To A Resistor R 980 Ohms And To An Emf Source With E 1 1 (87.32 KiB) Viewed 27 times
inicialmente igado y erruptor esta en la posicion 1. Despues se lleva el interruptor a la posici comience a cargarse. Cuando el interruptor ha estado en la posición 2 durante 10.0 ms, se lleva de nuevo a la posición 1 para descargarse. Interruptor S en la posición 1 Interruptor S en la posición 2 CE Ī R
