4) Determine a takeoff of materials for storefront glass required for a building entrance (Refer Figure 4). (20 points)

[answerhappygod]

4 Determine A Takeoff Of Materials For Storefront Glass Required For A Building Entrance Refer Figure 4 20 Points 1 (272.77 KiB) Viewed 22 times

4 Determine A Takeoff Of Materials For Storefront Glass Required For A Building Entrance Refer Figure 4 20 Points 2 (4.9 KiB) Viewed 22 times

Need to find pcs(pieces), linear feet, and total Linear
feet.

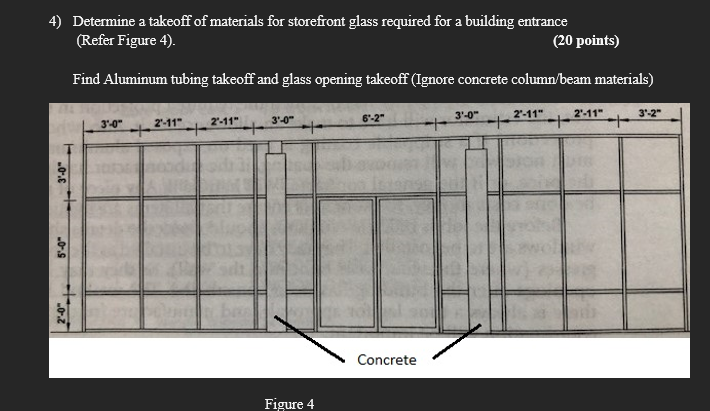

4) Determine a takeoff of materials for storefront glass required for a building entrance (Refer Figure 4). (20 points) Find Aluminum tubing takeoff and glass opening takeoff (Ignore concrete column/beam materials) 3-2- 3'-0" 3'-0" 2-11" 6-2" 2-11" 3-0" + 2-11" 2-11" -- 0.6 5-0 -0-2 Concrete Figure 4
Pcs Linear Ft Length 10'-0" 3'-0" 2'-11" 3-2" 6-2" Total LF Aluminum Tubing Takeoff
