please explain the inertia part detailed

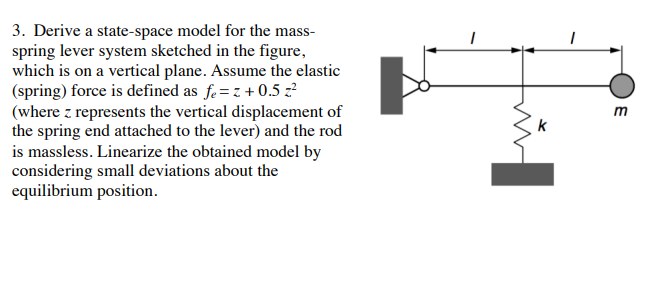

1 3. Derive a state-space model for the mass- spring lever system sketched in the figure, which is on a vertical plane. Assume the elastic (spring) force is defined as fe=z +0.5 22 (where z represents the vertical displacement of the spring end attached to the lever) and the rod is massless. Linearize the obtained model by considering small deviations about the equilibrium position. m k
