Question 1 (use ABCD parameters of your NPM) 40 minutes Given the system of the following figure: Y(s) B u(s) G (s) U(s)

Post by answerhappygod »

Question 1 Use Abcd Parameters Of Your Npm 40 Minutes Given The System Of The Following Figure Y S B U S G S U S 1
Question 1 Use Abcd Parameters Of Your Npm 40 Minutes Given The System Of The Following Figure Y S B U S G S U S 1 (152.47 KiB) Viewed 64 times
B = 9
C = 1
D = 5

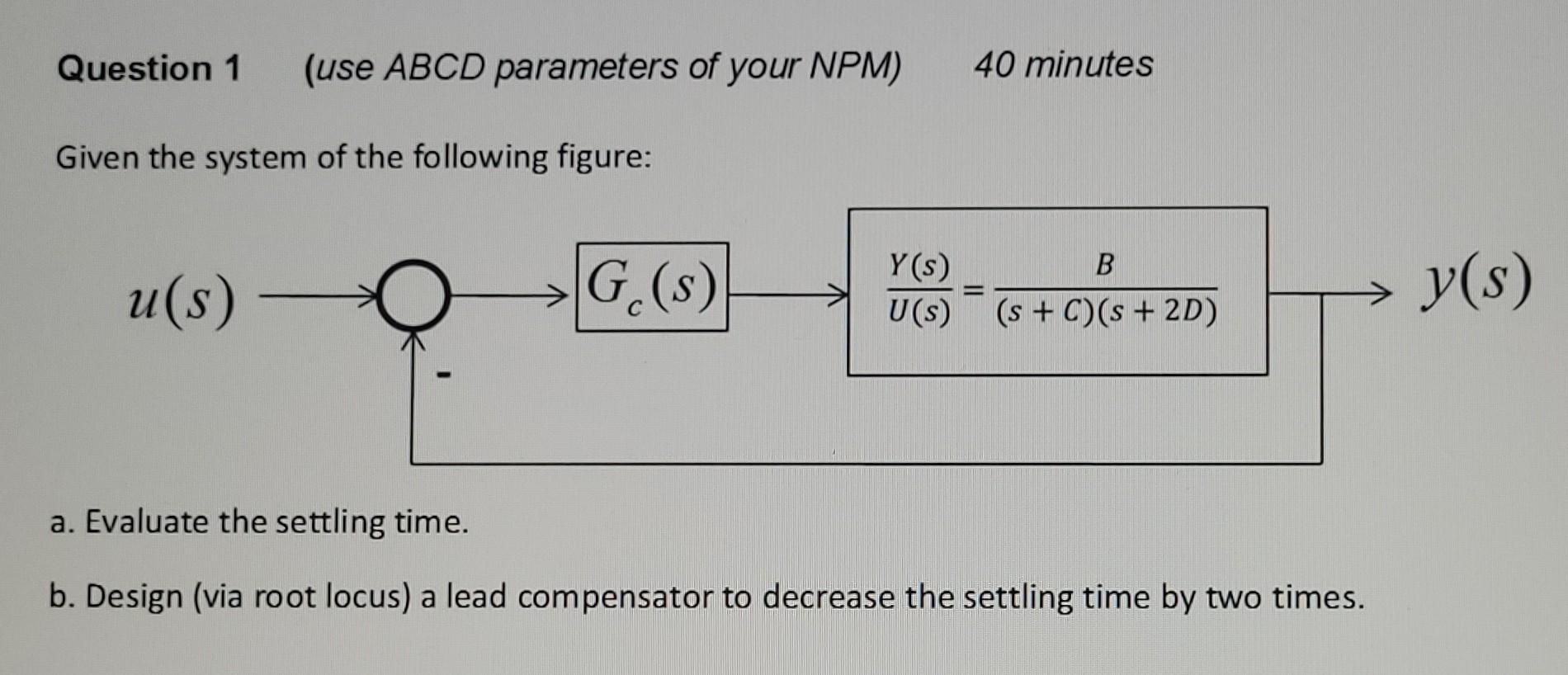

Question 1 (use ABCD parameters of your NPM) 40 minutes Given the system of the following figure: Y(s) B u(s) G (s) U(s) (s + C)(s + 2D) a. Evaluate the settling time. b. Design (via root locus) a lead compensator to decrease the settling time by two times. y(s)
