Q1. The per-unit d-axis and q-axis reactance's of a salient-pole generator are 0.9 and 0.6 respectively. The armature re

Post by answerhappygod »

Q1 The Per Unit D Axis And Q Axis Reactance S Of A Salient Pole Generator Are 0 9 And 0 6 Respectively The Armature Re 1
Q1 The Per Unit D Axis And Q Axis Reactance S Of A Salient Pole Generator Are 0 9 And 0 6 Respectively The Armature Re 1 (22.79 KiB) Viewed 35 times

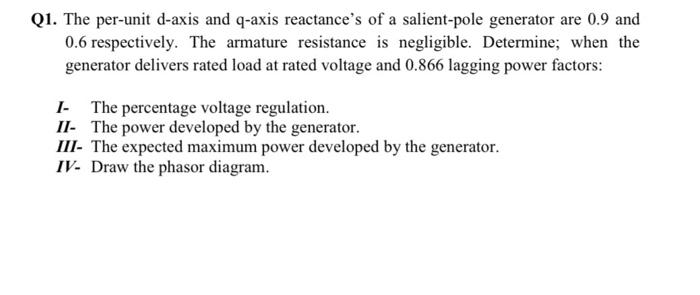

Q1. The per-unit d-axis and q-axis reactance's of a salient-pole generator are 0.9 and 0.6 respectively. The armature resistance is negligible. Determine; when the generator delivers rated load at rated voltage and 0.866 lagging power factors: I- The percentage voltage regulation. II- The power developed by the generator. III- The expected maximum power developed by the generator. IV- Draw the phasor diagram.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
