A firm wants to build mini hydro power plant and pumped storage hydroelectricity system. Flowrate is assume 100 l/s. The

[answerhappygod]

A Firm Wants To Build Mini Hydro Power Plant And Pumped Storage Hydroelectricity System Flowrate Is Assume 100 L S The 1 (127.74 KiB) Viewed 97 times

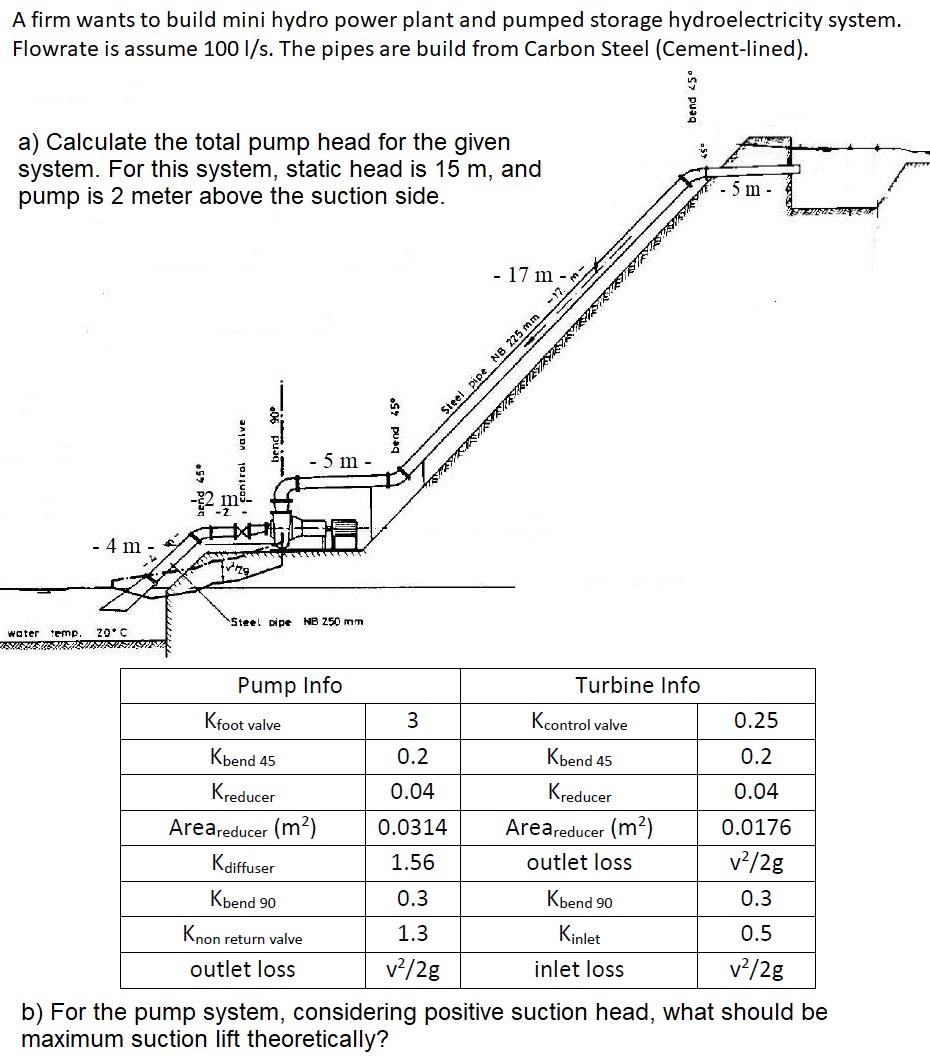

A firm wants to build mini hydro power plant and pumped storage hydroelectricity system. Flowrate is assume 100 l/s. The pipes are build from Carbon Steel (Cement-lined). a) Calculate the total pump head for the given system. For this system, static head is 15 m, and pump is 2 meter above the suction side. - 17 m- - 5 m - - 4 m Steel pipe NB 250 mm Pump Info water temp 20°C -17. Steel pipe NB 225 mm shuuustossa bend 45° i Turbine Info -5m- Kfoot valve 0.25 3 Kcontrol valve Kbend 45 0.2 0.2 Kbend 45 Kreducer 0.04 0.04 Kreducer Area reducer (m²) 0.0314 Area reducer (m²) 0.0176 1.56 outlet loss K diffuser v²/2g Kbend 90 0.3 0.3 Kbend 90 Knon return valve 0.5 1.3 Kinlet outlet loss v²/2g inlet loss v²/2g b) For the pump system, considering positive suction head, what should be maximum suction lift theoretically?
