Root Locus 0.8 0.6 0.4 0.2 Imaginary Axis (seconds) 0 -b -a -0.2 -0.4 -0.6 -0.8 Real Axis (seconds) Assume a system with

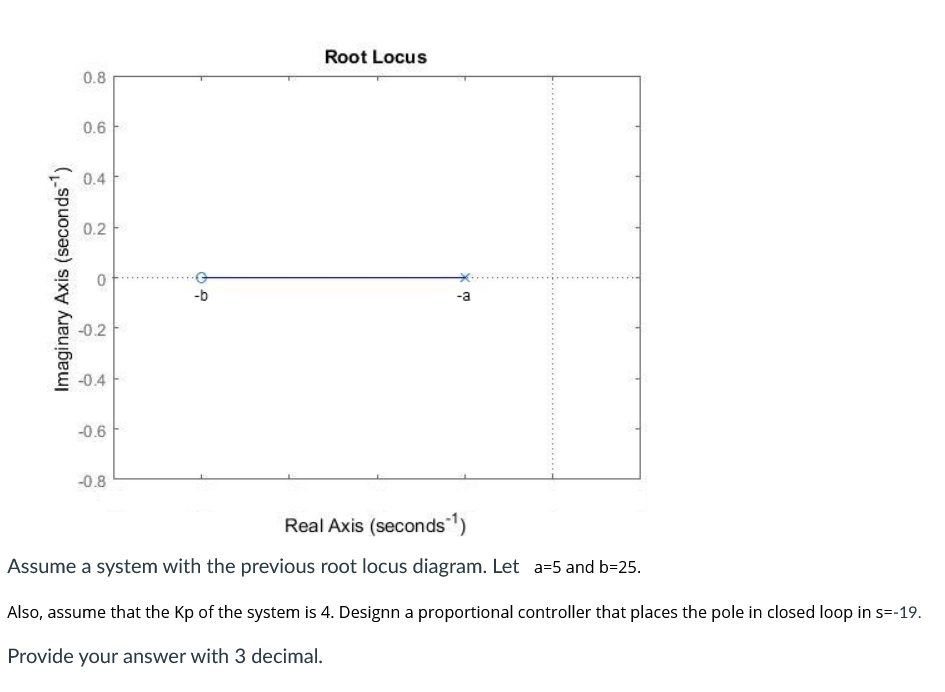

Root Locus 0.8 0.6 0.4 0.2 Imaginary Axis (seconds) 0 -b -a -0.2 -0.4 -0.6 -0.8 Real Axis (seconds) Assume a system with the previous root locus diagram. Let a=5 and b=25. Also, assume that the Kp of the system is 4. Designn a proportional controller that places the pole in closed loop in s=-19. Provide your answer with 3 decimal.
