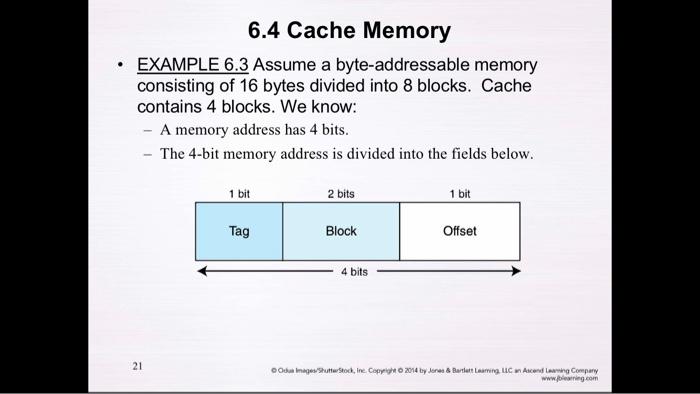

6.4 Cache Memory EXAMPLE 6.3 Assume a byte-addressable memory consisting of 16 bytes divided into 8 blocks. Cache contains 4 blocks. We know: - A memory address has 4 bits. - The 4-bit memory address is divided into the fields below. 1 bit 2 bits 1 bit Tag Block Offset 4 bits 21 Oda images Shuttu Stoch, Ine. Copyright 2014 by Jones & Bartlett Learning, LC Ascend learning Company www.bing.com

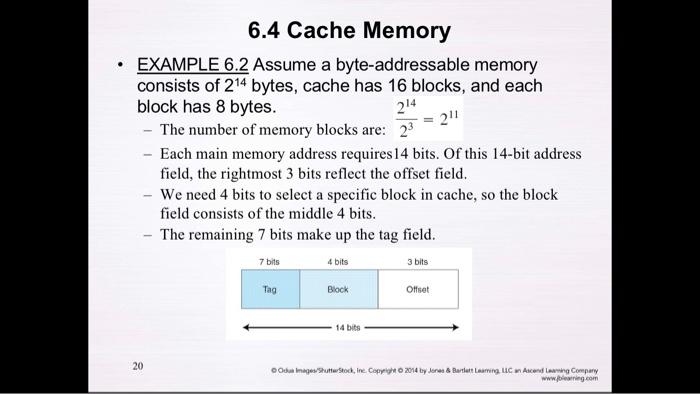

6.4 Cache Memory EXAMPLE 6.2 Assume a byte-addressable memory consists of 214 bytes, cache has 16 blocks, and each block has 8 bytes. 214 211 - The number of memory blocks are: 23 - Each main memory address requires 14 bits. Of this 14-bit address field, the rightmost 3 bits reflect the offset field. We need 4 bits to select a specific block in cache, so the block field consists of the middle 4 bits. The remaining 7 bits make up the tag field. 7 bits 4 bits 3 bits Tag Block Offset 14 bits 20 Odun Images Shuttu Stoch, Ine Copyright 2014 by Jones & Barriert Laarning Centending Company www.bing.com
