Q4. (a) Figure Q4-1 illustrates the arrangement of openings for a naturally ventilated building. The design outdoor temp

[answerhappygod]

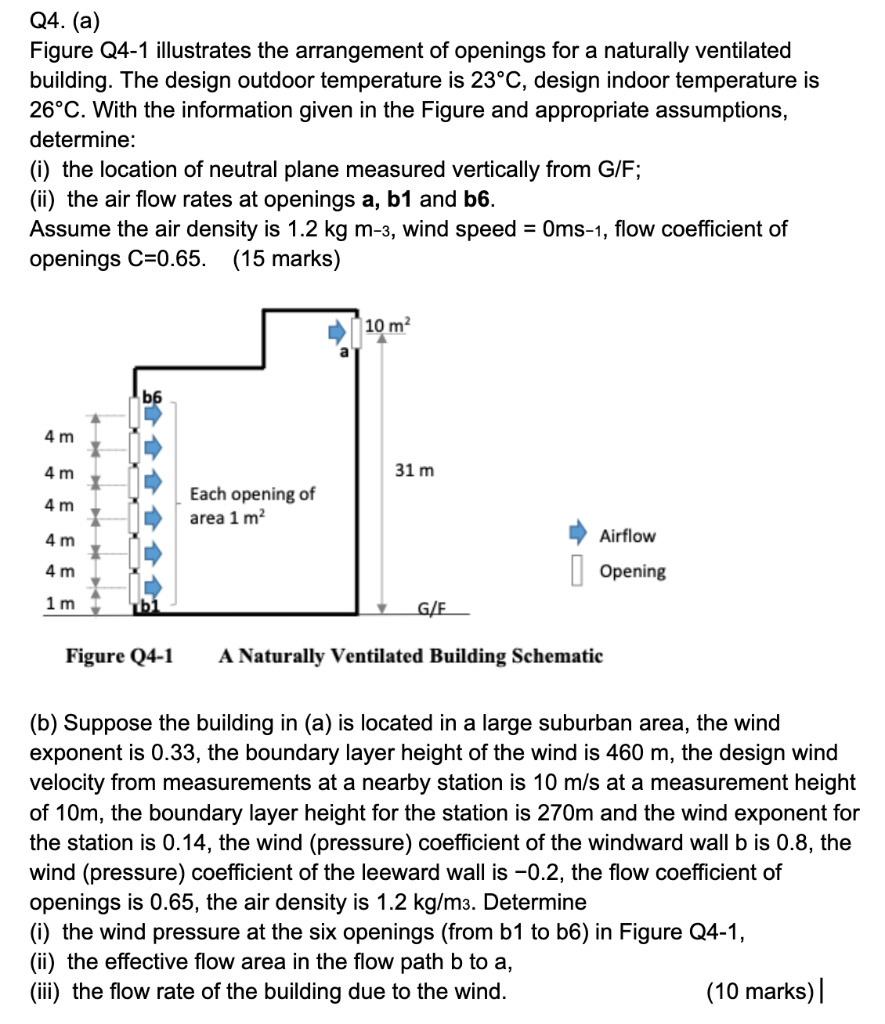

Q4 A Figure Q4 1 Illustrates The Arrangement Of Openings For A Naturally Ventilated Building The Design Outdoor Temp 1 (236.25 KiB) Viewed 20 times
