Consider the network of resistors shown in the figure below; notice that the battery has internal resistance of 2.00 ohm
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Consider the network of resistors shown in the figure below; notice that the battery has internal resistance of 2.00 ohm

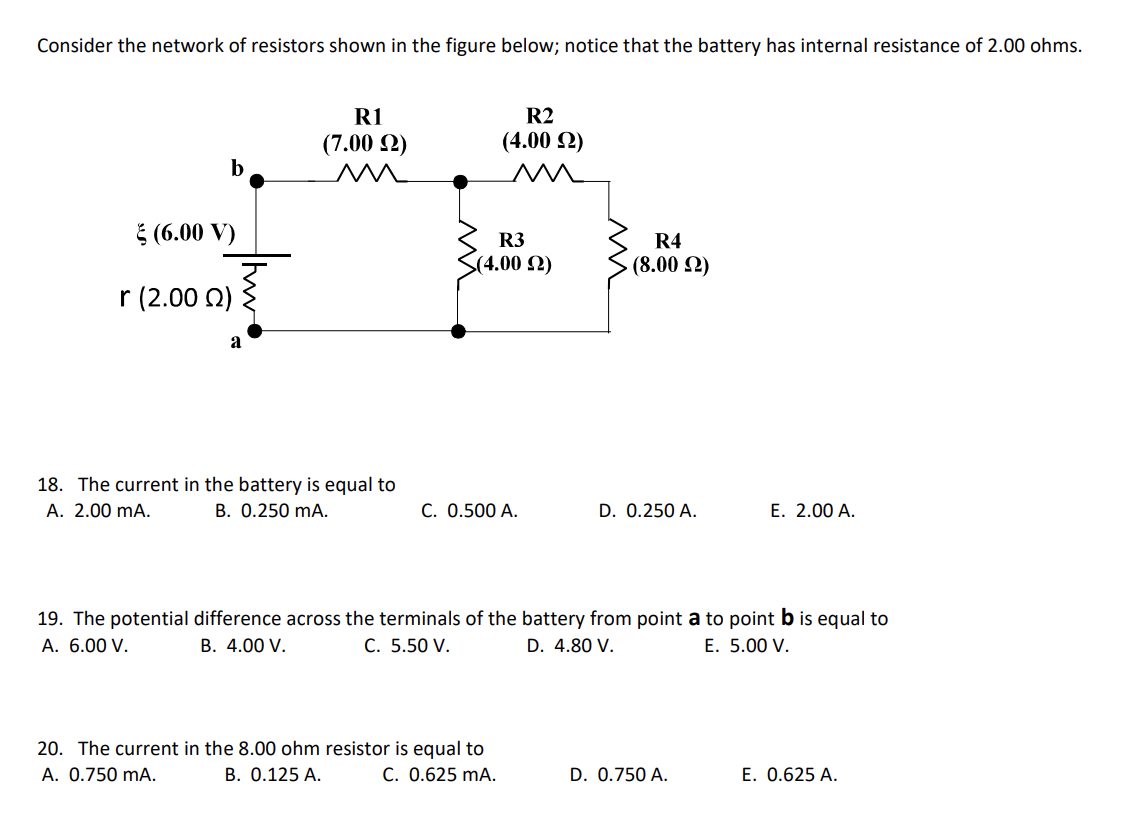

Consider the network of resistors shown in the figure below; notice that the battery has internal resistance of 2.00 ohms. R1 (7.00 (2) R2 (4.00 22) b $ (6.00 V) R3 (4.002 R4 (8.00 22) r (2.00 12) 18. The current in the battery is equal to A. 2.00 mA. B. 0.250 mA. C. 0.500 A. D. 0.250 A. E. 2.00 A. 19. The potential difference across the terminals of the battery from point a to point b is equal to A. 6.00 V. B. 4.00 V. C. 5.50 V. D. 4.80 V. E. 5.00 V. 20. The current in the 8.00 ohm resistor is equal to A. 0.750 mA. B. 0.125 A. C. 0.625 mA. D. 0.750 A. E. 0.625 A.
