Consider the circuit below, which contains identical bulbs, ideal batteries, ideal wires having zero resistance, and per

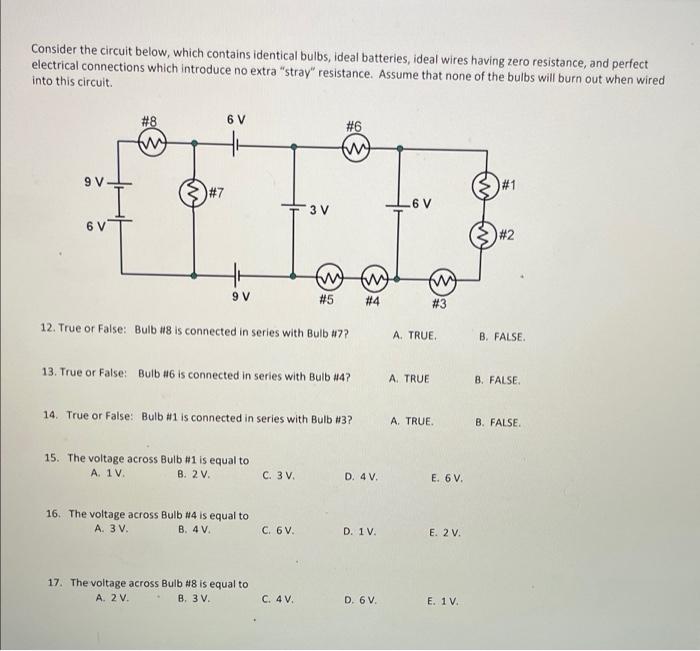

Consider the circuit below, which contains identical bulbs, ideal batteries, ideal wires having zero resistance, and perfect electrical connections which introduce no extra "stray" resistance. Assume that none of the bulbs will burn out when wired into this circuit 6 V #8 tw #6 w 9V #1 #7 3V -6 V 6v #2 tus tow #4 9 V #5 w #3 12. True or False: Bulb #8 is connected in series with Bulb #7? A. TRUE B. FALSE 13. True or False: Bulb 6 is connected in series with Bulb #4? A TRUE B. FALSE 14. True or False: Bulb #1 is connected in series with Bulb #3? A. TRUE B. FALSE 15. The voltage across Bulb #1 is equal to A. 1V. B. 2 v. C. 3 v. D. 4V E. 6 V 16. The voltage across Bulb #4 is equal to A. 3V B. 4V C. 6V. D. 1V. E. 2v 17. The voltage across Bulb #8 is equal to A. 2 V. B 3 V. C. 4V D. 6V E. 1V.
