R2 W 12 R w 13 R3 wa Holl Figure 18.55 Problem 18.79.

[answerhappygod]

R2 W 12 R W 13 R3 Wa Holl Figure 18 55 Problem 18 79 1 (65.31 KiB) Viewed 24 times

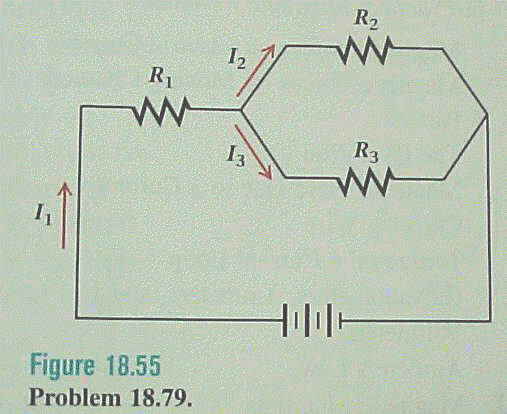

(c18p79) Three resistors are joined together across a 30 Volts
battery (see the figure). The voltage drop across resistor R1 is
9.707 Volts, the current i2 through resistor R2 is 0.217 A, and the
power dissipated in resistor R3 is 4.065 W.
What is the value of each resistor? R1? Tries 0/8 R2? Tries 0/8
R3? Tries 0/8
What is the current through each resistor? i1? Tries 0/8
i3? Tries 0/8
What is the power dissipated in each resistor? P1? Tries 0/8
P2? Tries 0/8 Find the total resistance of the network. Tries
0/8
Find the current drawn from the battery. Tries 0/8
Find the total power used by the circuit. Tries 0/8
R2 W 12 R w 13 R3 wa Holl Figure 18.55 Problem 18.79.
