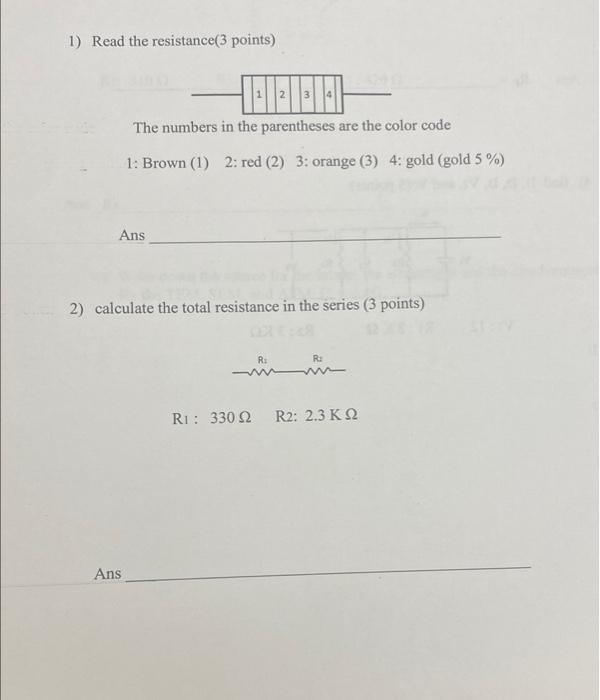

1) Read the resistance(3 points) The numbers in the parentheses are the color code 1: Brown (1) 2: red (2) 3: orange (3)

[answerhappygod]

1 Read The Resistance 3 Points The Numbers In The Parentheses Are The Color Code 1 Brown 1 2 Red 2 3 Orange 3 1 (24.87 KiB) Viewed 31 times

1 Read The Resistance 3 Points The Numbers In The Parentheses Are The Color Code 1 Brown 1 2 Red 2 3 Orange 3 2 (24.87 KiB) Viewed 31 times

1 Read The Resistance 3 Points The Numbers In The Parentheses Are The Color Code 1 Brown 1 2 Red 2 3 Orange 3 3 (22.33 KiB) Viewed 31 times

1 Read The Resistance 3 Points The Numbers In The Parentheses Are The Color Code 1 Brown 1 2 Red 2 3 Orange 3 4 (29.87 KiB) Viewed 31 times

1) Read the resistance(3 points) The numbers in the parentheses are the color code 1: Brown (1) 2: red (2) 3: orange (3) 4: gold (gold 5 %) Ans 2) calculate the total resistance in the series (3 points) R: R: chann RI: 3302 R2: 2.3 ΚΩ Ans

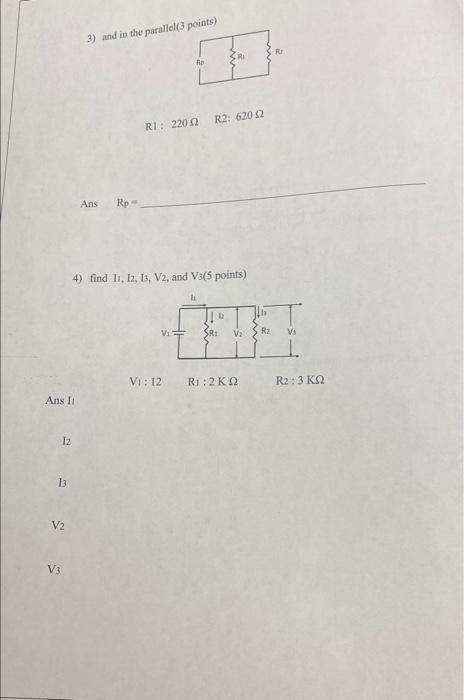

3) and in the parallel(3 points) RI R2: 6202 RI: 220 22 Ans Rp 4) find 11, 12, 13, V2, and V3(5 points) V SR1 V2 Rz Vs V1:12 R1:2 K2 R2:3 K12 Ans 1 12 13 V2 V3

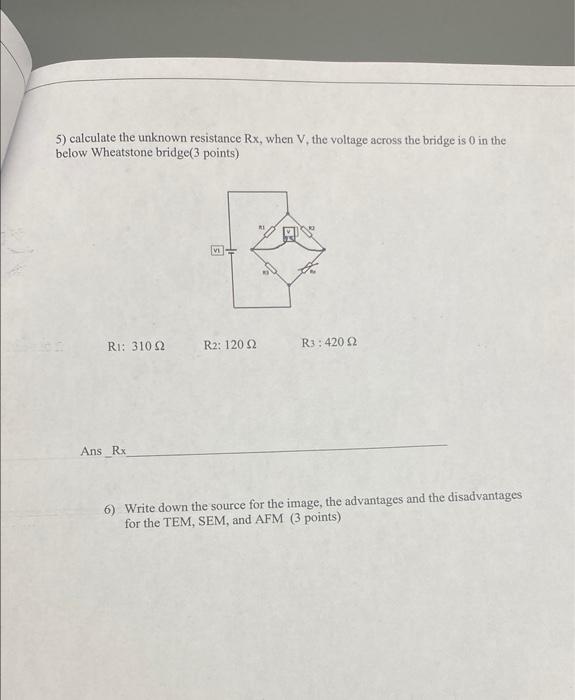

5) calculate the unknown resistance Rx, when V, the voltage across the bridge is 0 in the below Wheatstone bridge(3 points) Ri: 3102 R2: 1202 R3: 4200 Ans Rx 6) Write down the source for the image, the advantages and the disadvantages for the TEM, SEM, and AFM (3 points)
