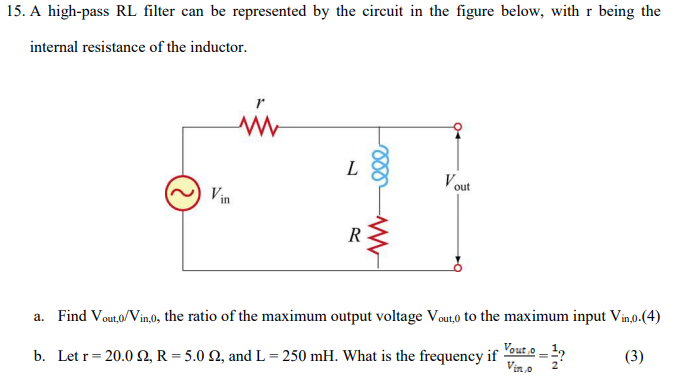

15. A high-pass RL filter can be represented by the circuit in the figure below, with r being the internal resistance of the inductor. w L 000 V out Vin R w a. Find out,o/Vin,0, the ratio of the maximum output voltage Vout,o to the maximum input Vin,0 (4) Vouto -12 b. Letr=20.0 2, R = 5.0 32, and L = 250 mH. What is the frequency if (3) = Vino 2

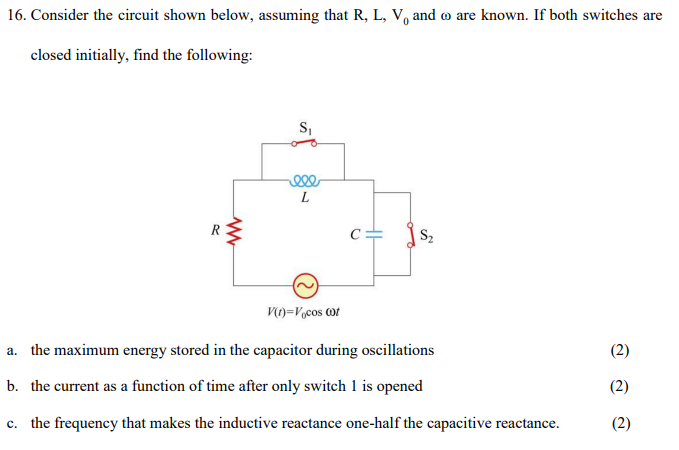

16. Consider the circuit shown below, assuming that R, L, V, and o are known. If both switches are closed initially, find the following: S 100 L w w S2 V(O)= cost (2) a. the maximum energy stored in the capacitor during oscillations b. the current as a function of time after only switch 1 is opened c. the frequency that makes the inductive reactance one-half the capacitive reactance. (2) (2)
