14. A sinusoidal voltage V(t) = (40.0)sin (100t) is applied to a series RLC circuit with L = 160 MH, C = 99.0 uF, and R

Post by answerhappygod »

14 A Sinusoidal Voltage V T 40 0 Sin 100t Is Applied To A Series Rlc Circuit With L 160 Mh C 99 0 Uf And R 1
14 A Sinusoidal Voltage V T 40 0 Sin 100t Is Applied To A Series Rlc Circuit With L 160 Mh C 99 0 Uf And R 1 (29.92 KiB) Viewed 26 times

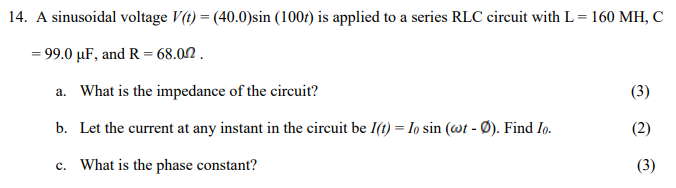

14. A sinusoidal voltage V(t) = (40.0)sin (100t) is applied to a series RLC circuit with L = 160 MH, C = 99.0 uF, and R = 68.02. . (3) a. What is the impedance of the circuit? b. Let the current at any instant in the circuit be I(t) = lo sin (wt - Ø). Find Io. c. What is the phase constant? (2) (3)
