The triangular plate ABC is deformed into the shape shown by the dashed lines. If at A, AB = 0.0075, € Ac = 0.01 and Yxy

Post by answerhappygod »

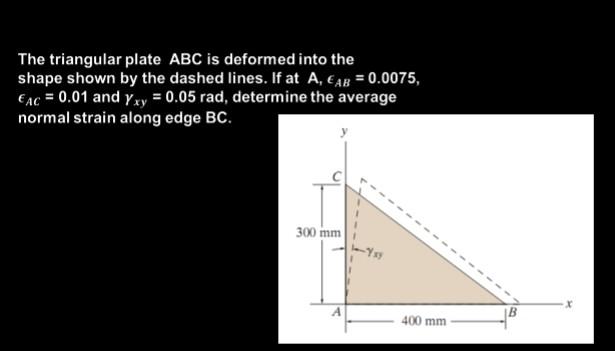

The Triangular Plate Abc Is Deformed Into The Shape Shown By The Dashed Lines If At A Ab 0 0075 Ac 0 01 And Yxy 1
The Triangular Plate Abc Is Deformed Into The Shape Shown By The Dashed Lines If At A Ab 0 0075 Ac 0 01 And Yxy 1 (18.07 KiB) Viewed 40 times
The triangular plate ABC is deformed into the shape shown by the dashed lines. If at A, AB = 0.0075, € Ac = 0.01 and Yxy = 0.05 rad, determine the average normal strain along edge BC. 300 mm A 400 mm
