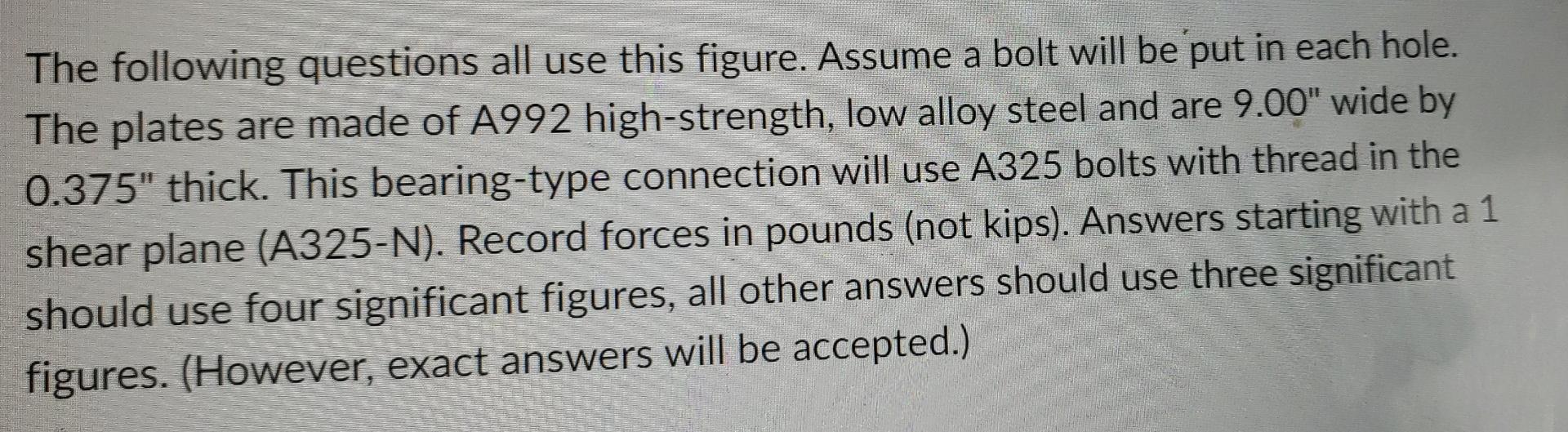

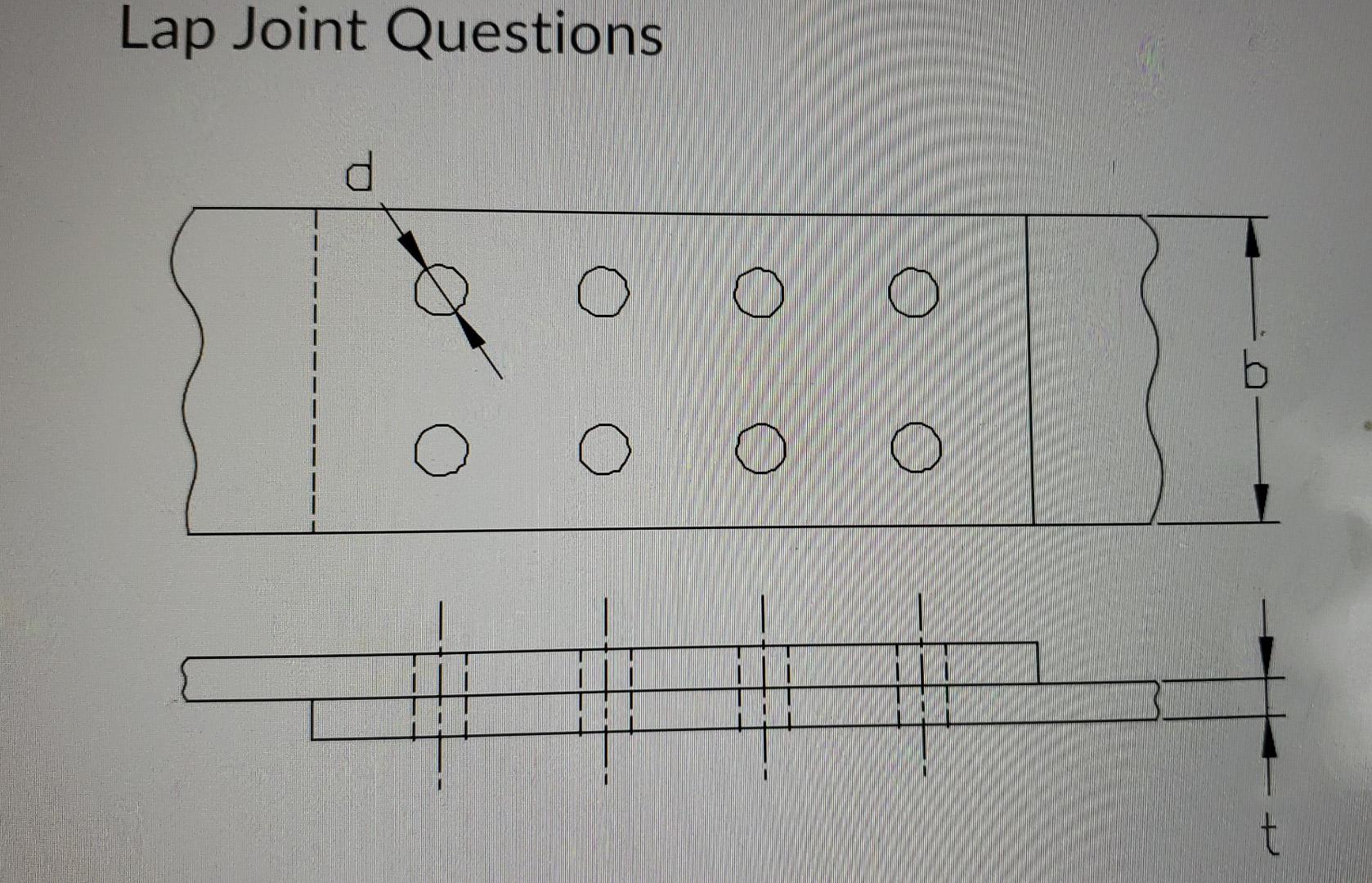

The following questions all use this figure. Assume a bolt will be put in each hole. The plates are made of A992 high-strength, low alloy steel and are 9.00" wide by 0.375" thick. This bearing-type connection will use A325 bolts with thread in the shear plane (A325-N). Record forces in pounds (not kips). Answers starting with a 1 should use four significant figures, all other answers should use three significant figures. (However, exact answers will be accepted.)

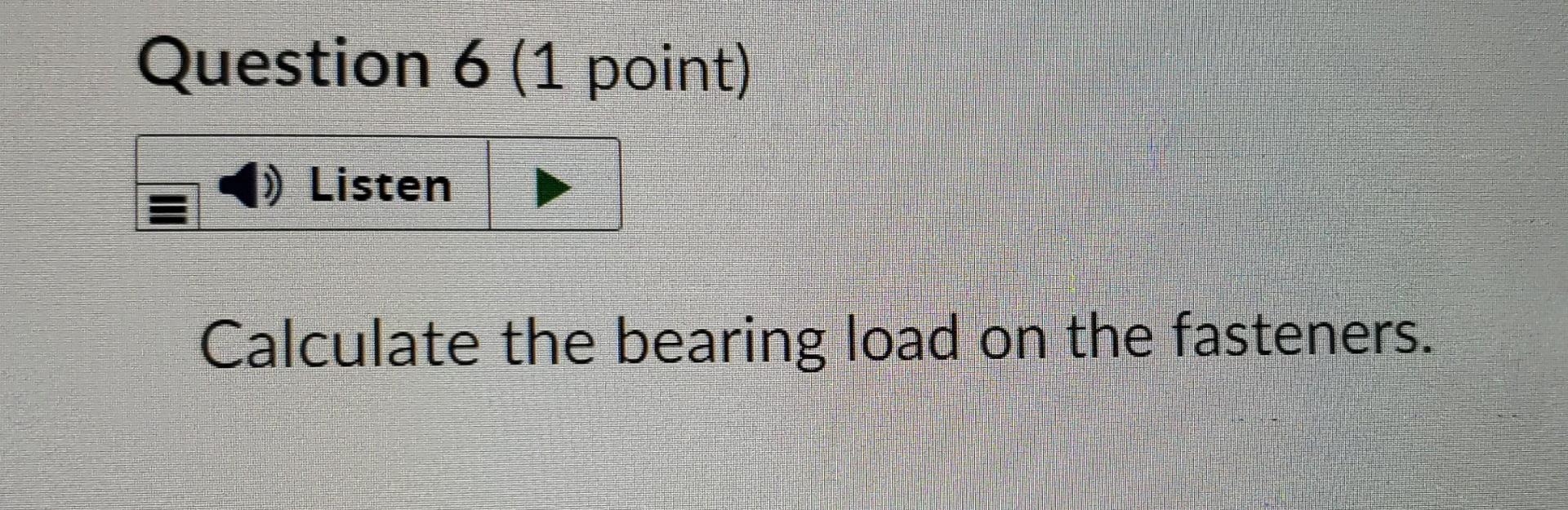

Question 6 (1 point) Listen Calculate the bearing load on the fasteners.
