A to O2 = 200mm
A to B = 600mm
B to O4 = 480mm
A to M = 400mm

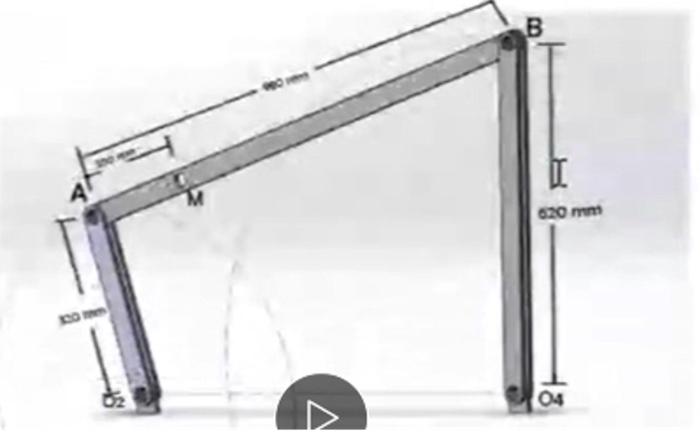

- Here Are The Dimensions A To O2 200mm A To B 600mm B To O4 480mm A To M 400mm 1 (20.26 KiB) Viewed 45 times
- Here Are The Dimensions A To O2 200mm A To B 600mm B To O4 480mm A To M 400mm 2 (9.98 KiB) Viewed 45 times
- Here Are The Dimensions A To O2 200mm A To B 600mm B To O4 480mm A To M 400mm 3 (9.98 KiB) Viewed 45 times

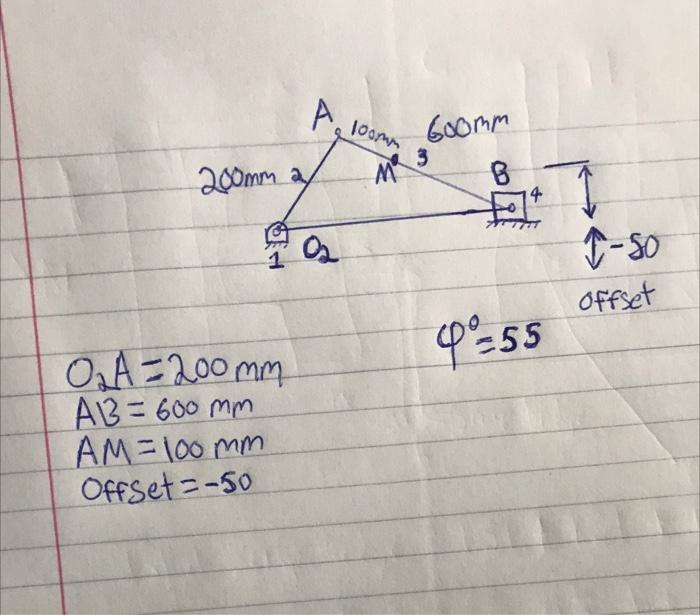

- Here Are The Dimensions A To O2 200mm A To B 600mm B To O4 480mm A To M 400mm 4 (50.73 KiB) Viewed 45 times
5. Find the Velocity of B (m/sec) using the relative velocity method and the instant center. 6. Find the value of angular velocity (rev/min) for the link 4 at the given moment.
A looma 3 Goomm B 200mm a M M 1 1-50 offset 4°=55 O2A=200mm AB=600 mm AM = 100 mm Offset=-50
