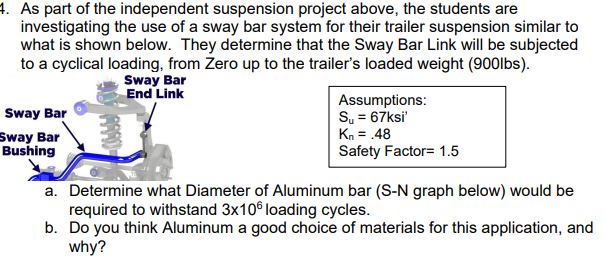

4. As part of the independent suspension project above, the students are investigating the use of a sway bar system for their trailer suspension similar to what is shown below. They determine that the Sway Bar Link will be subjected to a cyclical loading, from Zero up to the trailer's loaded weight (900lbs). Sway Bar End Link Assumptions: Sway Bar Su = 67ksi Sway Bar Ko = 48 Bushing Safety Factor= 1.5 a. Determine what Diameter of Aluminum bar (S-N graph below) would be required to withstand 3x10 loading cycles. b. Do you think Aluminum a good choice of materials for this application, and why?
nein 80 -0.40 0.00 0.06 RUNOUT 70 X 2 206 aoo -0.40 R -0.50 x 0 X 001- 2 STRESS, KSI MAXIMUM EX A o x XX O AM .......... -grt 4 . o ob 40 X ... AZO 7 171 yo .... D OBD . X x X + UC XEA סיטי 1989 o0ood a 0..9 9 7 P ...a ....00 too 20 o " to #14 OT 10 10 10 10 10 10 FATIGUE LIFE, CYCLES 105 106
