2. Design an ideal integrator (or Pl) compensator for the system shown below. The compensator should be designed such th
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. Design an ideal integrator (or Pl) compensator for the system shown below. The compensator should be designed such th

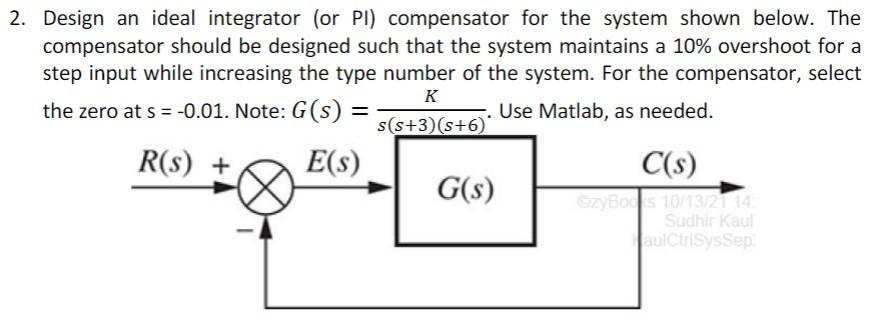

2. Design an ideal integrator (or Pl) compensator for the system shown below. The compensator should be designed such that the system maintains a 10% overshoot for a step input while increasing the type number of the system. For the compensator, select K the zero at s = -0.01. Note: G(S) = Use Matlab, as needed. s(s+3)(3+6) R(S) + E(S) C(s) G(S) czy 19/32714 Sudhir Kaul TulctrlSysSep
