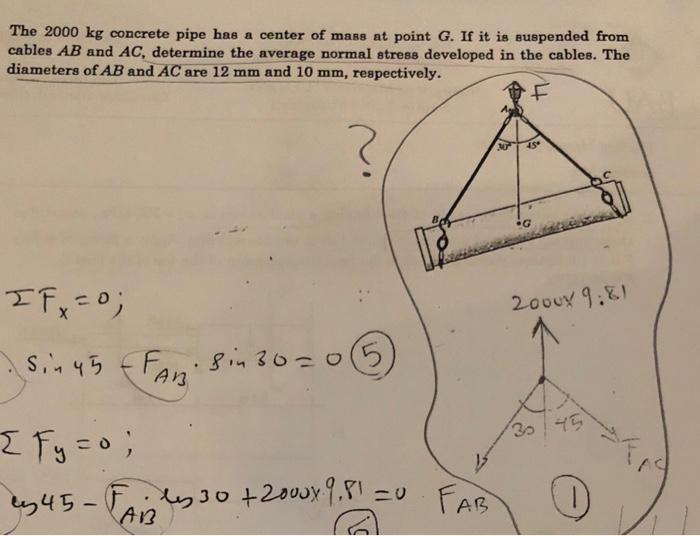

The 2000 kg concrete pipe has a center of mass at point G. If it is suspended from cables AB and AC, determine the average normal stress developed in the cables. The diameters of AB and AC are 12 mm and 10 mm, respectively. ? G 2 IF,0; 20vov 9:6) Sin 45 Farzi sin 30=0 (5) 3045 { Fy=0; 4345 - Finley 30 + 2003 9.81 = Faisles 0 FAB 0 0

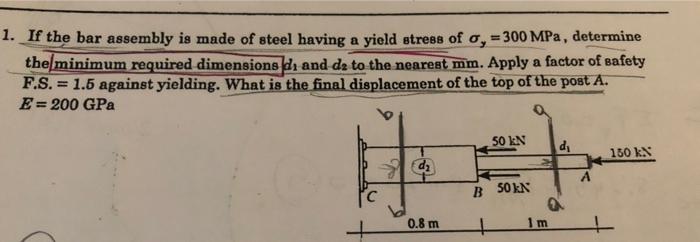

1. If the bar assembly is made of steel having a yield stress of o, = 300 MPa, determine the minimum required dimensions di and de to the nearest mm. Apply a factor of safety F.S. = 1.5 against yielding. What is the final displacement of the top of the post A. E= 200 GPa - 50 KN di 150 KN de с B 50 kN 0.8 m + 1 m
