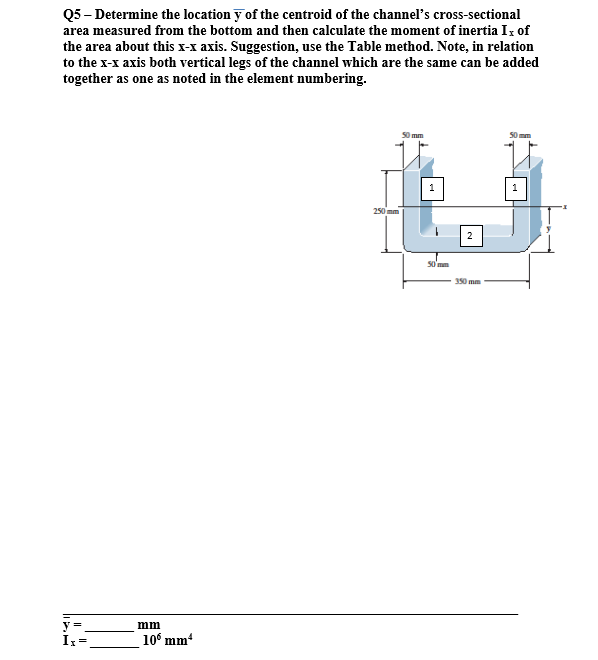

Q5 – Determine the location y of the centroid of the channel's cross-sectional area measured from the bottom and then calculate the moment of inertia I, of the area about this x-x axis. Suggestion, use the Table method. Note, in relation to the x-x axis both vertical legs of the channel which are the same can be added together as one as noted in the element numbering. 50 mm 1 250 mm DI 2 So mm 350 II mm I 10 mm
