Q4 - A rack is made of roll-formed sheet steel and has the cross-section shown. Determine the location ( 1 and y) of the

Post by answerhappygod »

Q4 A Rack Is Made Of Roll Formed Sheet Steel And Has The Cross Section Shown Determine The Location 1 And Y Of The 1
Q4 A Rack Is Made Of Roll Formed Sheet Steel And Has The Cross Section Shown Determine The Location 1 And Y Of The 1 (22.84 KiB) Viewed 25 times

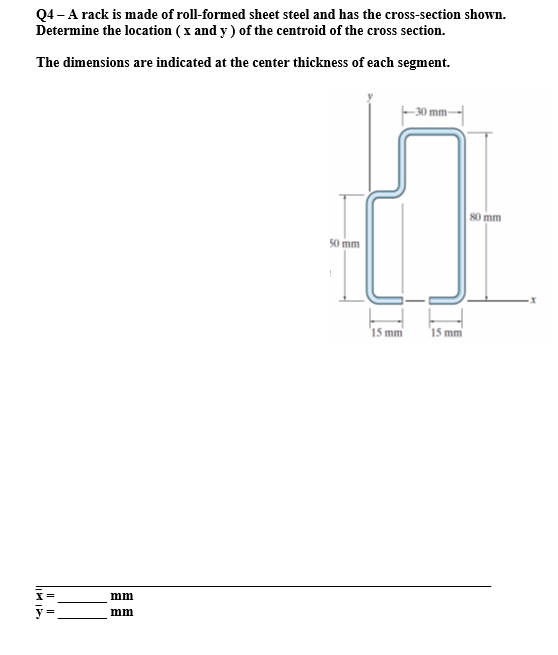

Q4 - A rack is made of roll-formed sheet steel and has the cross-section shown. Determine the location ( 1 and y) of the centroid of the cross section. The dimensions are indicated at the center thickness of each segment. -30 mm so mm 50 mm '15 mm 15 mm mm mm
