Q3 - Draw the Shear and Moment Diagrams for the Beam Loading below. Include the values of V in terms of P and M in terms

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q3 - Draw the Shear and Moment Diagrams for the Beam Loading below. Include the values of V in terms of P and M in terms

Post by answerhappygod »

Q3 Draw The Shear And Moment Diagrams For The Beam Loading Below Include The Values Of V In Terms Of P And M In Terms 1
Q3 Draw The Shear And Moment Diagrams For The Beam Loading Below Include The Values Of V In Terms Of P And M In Terms 1 (26.96 KiB) Viewed 30 times

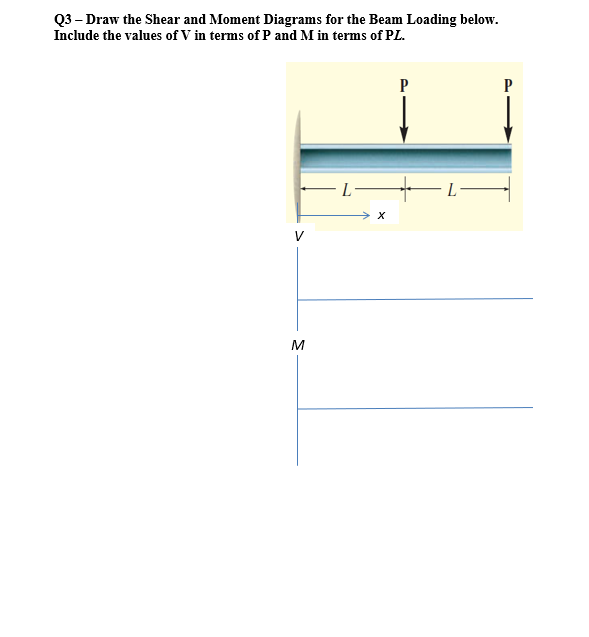

Q3 - Draw the Shear and Moment Diagrams for the Beam Loading below. Include the values of V in terms of P and M in terms of PL. P P L > X V M
