Question 2 (20 Points) Derive equations to describe displacement of a cam that has the following characteristics in the

Post by answerhappygod »

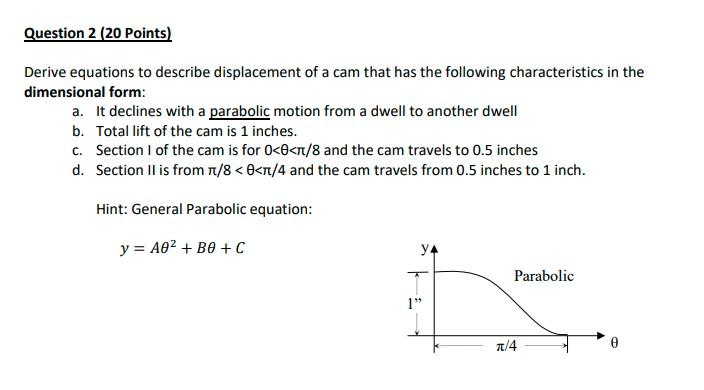

Question 2 20 Points Derive Equations To Describe Displacement Of A Cam That Has The Following Characteristics In The 1
Question 2 20 Points Derive Equations To Describe Displacement Of A Cam That Has The Following Characteristics In The 1 (30.01 KiB) Viewed 22 times
Question 2 (20 Points) Derive equations to describe displacement of a cam that has the following characteristics in the dimensional form: a. It declines with a parabolic motion from a dwell to another dwell b. Total lift of the cam is 1 inches. C. Section 1 of the cam is for 0<e<st/8 and the cam travels to 0.5 inches d. Section II is from 7/8 <O</4 and the cam travels from 0.5 inches to 1 inch. Hint: General Parabolic equation: y = A02 + Be + C У. Parabolic יין 7/4 0
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
