Question 1. (60 Points) The figure shows a function generator linkage in which the motion of rocker 2 corresponds to x a

[answerhappygod]

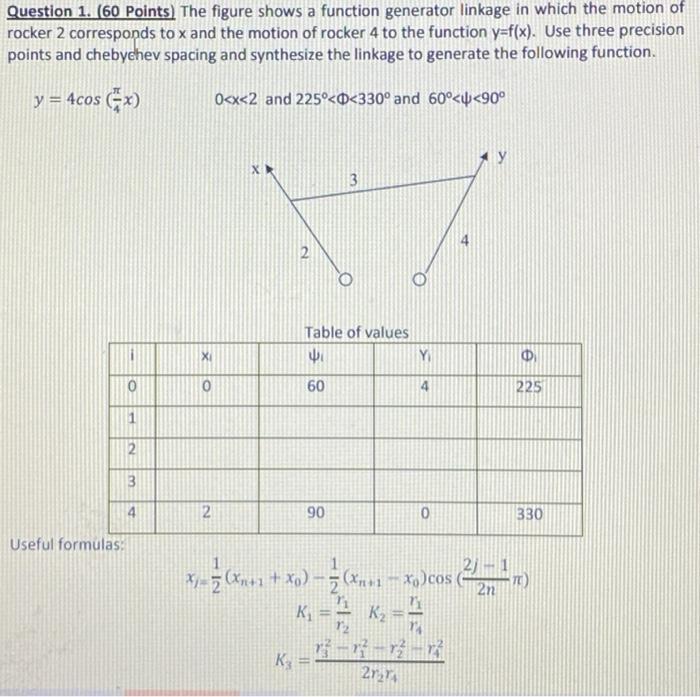

Question 1 60 Points The Figure Shows A Function Generator Linkage In Which The Motion Of Rocker 2 Corresponds To X A 1 (75.42 KiB) Viewed 33 times

Question 1. (60 Points) The figure shows a function generator linkage in which the motion of rocker 2 corresponds to x and the motion of rocker 4 to the function y=f(x). Use three precision points and chebychev spacing and synthesize the linkage to generate the following function. y = 4cos (x) 0<x<2 and 225°<®<330° and 60°<<90° 3 2 O Table of values XI YI Φ 0 60 225 3 4 2 90 330 Useful formulas 1, CX + x)(x - 1,2cos +1 xo 2) 2n TO) K =) 2 X1 , R2 = 12 13 K 2137
