1. (30 points) Calculate the normal stress in bar BC caused by the applied load of 707 Ib on the frame. The cross sectio

Post by answerhappygod »

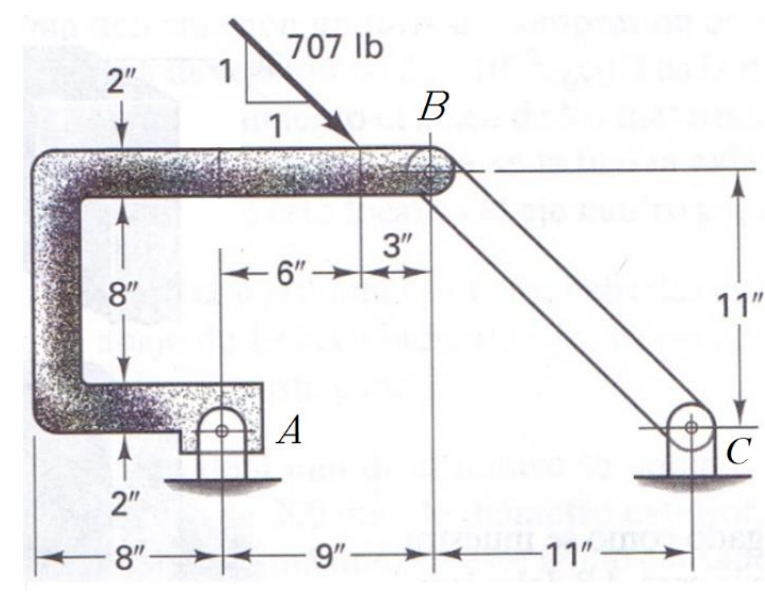

1. (30 points) Calculate the normal stress in bar BC caused by
the applied load of 707 Ib on the frame. The cross section of BC is
that of a solid bar 2 inches in diameter
1 30 Points Calculate The Normal Stress In Bar Bc Caused By The Applied Load Of 707 Ib On The Frame The Cross Sectio 1
1 30 Points Calculate The Normal Stress In Bar Bc Caused By The Applied Load Of 707 Ib On The Frame The Cross Sectio 1 (446.93 KiB) Viewed 31 times
707 Ib 2" 1 B 1 3" -6" 8" 11" A C - 2" 8" - 9"- -11" —
