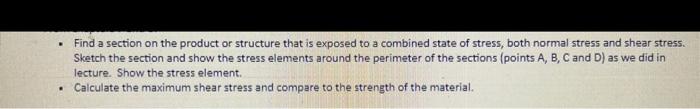

Find a section on the product or structure that is exposed to a combined state of stress, both normal stress and shear stress. Sketch the section and show the stress elements around the perimeter of the sections (points A, B, C and D) as we did in lecture. Show the stress element Calculate the maximum shear stress and compare to the strength of the material. .
