Need the answer urgently please, Thank you in advance.

Post by **answerhappygod** » Wed Apr 27, 2022 8:15 pm

: Need The Answer Urgently Please Thank You In Advance 1 (22.36 KiB) Viewed 43 times

: Need The Answer Urgently Please Thank You In Advance 2 (392.38 KiB) Viewed 43 times

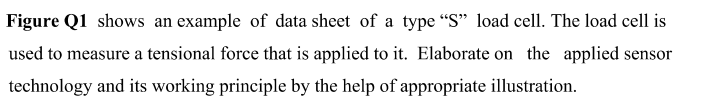

Figure Q1 shows an example of data sheet of a type "S” load cell. The load cell is used to measure a tensional force that is applied to it. Elaborate on the applied sensor technology and its working principle by the help of appropriate illustration.

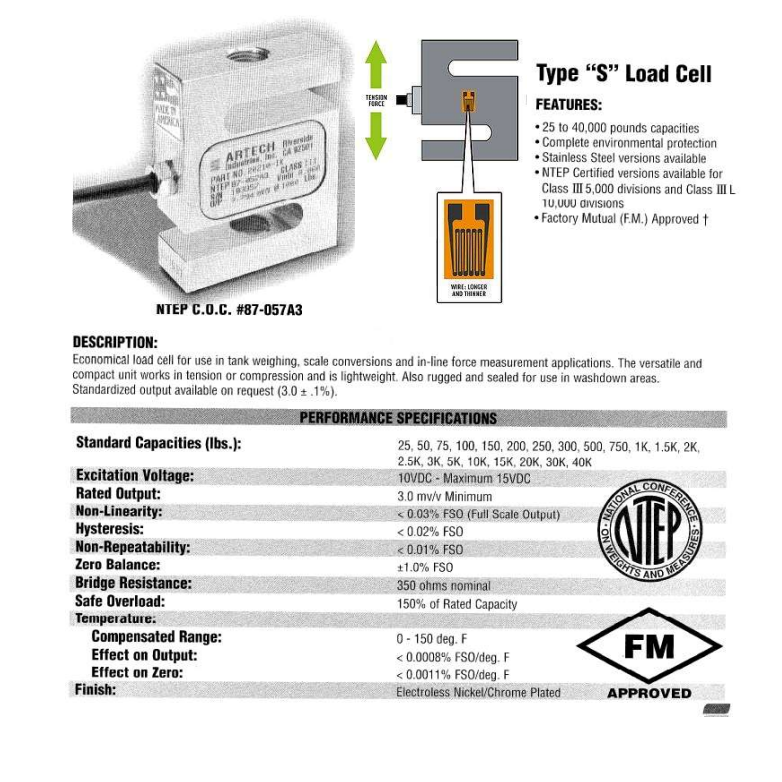

TENSION FORCE IM HT Type "S" Load Cell FEATURES: .25 to 40,000 pounds capacities • Complete environmental protection Stainless Steel versions available •NTEP Certified versions available for Class III 5,000 divisions and Class IIL 10,000 divisions • Factory Mutual (F.M.) Approved ARTECH www. PT NOW VIFP CLARS 17 WWW th WIRE LONGER AND THENER NTEP C.O.C. #87-057A3 DESCRIPTION: Economical load cell for use in tank weighing, scale conversions and in-line force measurement applications. The versatile and compact unit works in tension or compression and is lightweight. Also rugged and sealed for use in washdown areas. Standardized output available on request (3.01.1%). PERFORMANCE SPECIFICATIONS Standard Capacities (lbs.): 25, 50, 75, 100, 150, 200, 250, 300, 500, 750, 1K, 1.5K, 2K, 2.5K, 3K, 5K, 10K, 15K, 20K, 30K, 40K Excitation Voltage: 10VDC - Maximum 15VDC Rated Output: 3.0 m/v Minimum Non-Linearity: <0.03% FSO (Full Scale Output) Hysteresis: < 0.02% FSO Non-Repeatability: <0.01% FSO Zero Balance: +1.0% FSO Bridge Resistance: 350 ohms nominal Safe Overload: 150% of Rated Capacity Temperature: Compensated Range: 0 - 150 deg. F FM Effect on Output: < 0.0008% FSO/deg. F Effect on Zero: <0.0011% FSO/deg. F Finish: Electroless Nickel/Chrome Plated APPROVED WATIONAL ONFERENCESIONSVENO CON WEIGHT
