Q1 (a) Measurement systems plays a crucial role in industrial automation. Elaborate how the measurement systems help the

[answerhappygod]

Q1 A Measurement Systems Plays A Crucial Role In Industrial Automation Elaborate How The Measurement Systems Help The 1 (39.21 KiB) Viewed 35 times

Q1 A Measurement Systems Plays A Crucial Role In Industrial Automation Elaborate How The Measurement Systems Help The 2 (75.34 KiB) Viewed 35 times

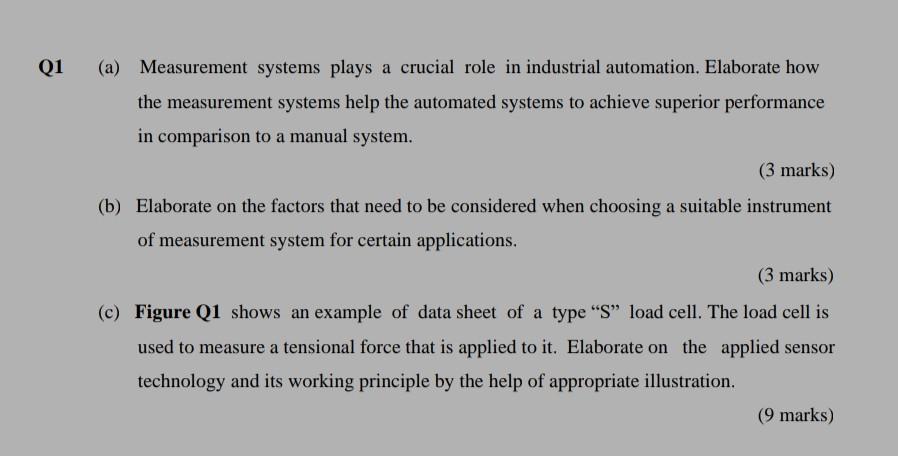

Q1 (a) Measurement systems plays a crucial role in industrial automation. Elaborate how the measurement systems help the automated systems to achieve superior performance in comparison to a manual system. (3 marks) (b) Elaborate on the factors that need to be considered when choosing a suitable instrument of measurement system for certain applications. (3 marks) (c) Figure Q1 shows an example of data sheet of a type "S" load cell. The load cell is used to measure a tensional force that is applied to it. Elaborate on the applied sensor technology and its working principle by the help of appropriate illustration. (9 marks)

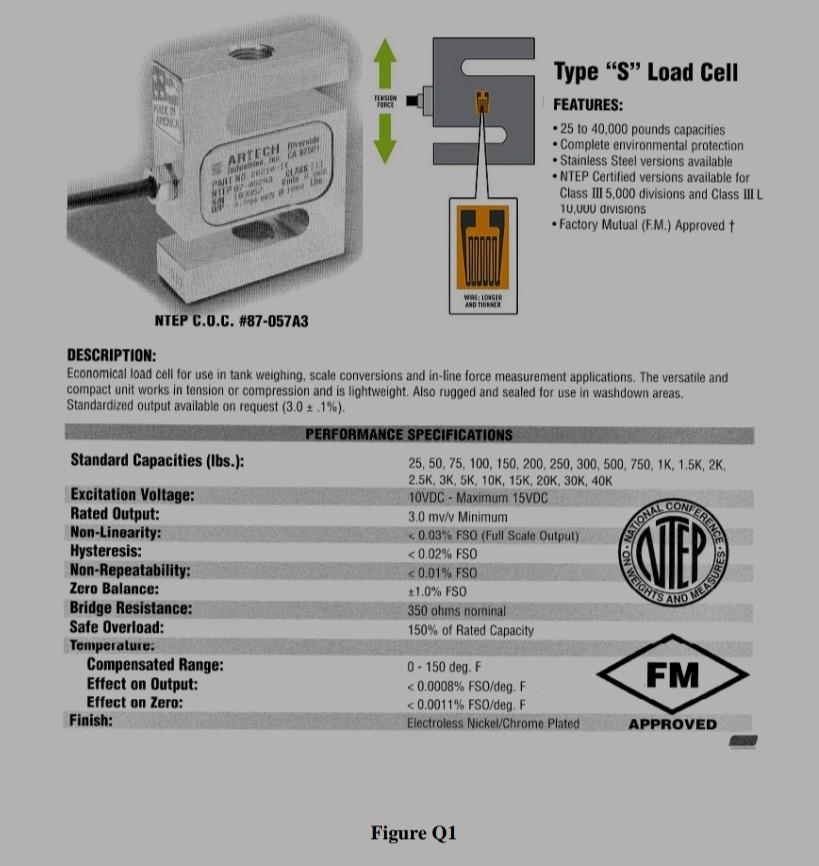

TENSION TERCE MA NON 5 . Type “S” Load Cell FEATURES: .25 to 40,000 pounds capacities Complete environmental protection Stainless Steel versions available •NTEP Certified versions available for Class III 5,000 divisions and Class IIIL 10,00U divisions • Factory Mutual (F.M.) Approved . ARTECH Edw. W KA PUTNO CLAN Www lewe WRECONSER AND THREER NTEP C.O.C. #87-057A3 DESCRIPTION: Economical load cell for use in tank weighing, scale conversions and in-line force measurement applications. The versatile and compact unit works in tension or compression and is lightweight. Also rugged and sealed for use in washdown areas. Standardized output available on request (3.01.1%). PERFORMANCE SPECIFICATIONS Standard Capacities (lbs.): 25, 50, 75, 100, 150, 200, 250, 300, 500, 750, 1K, 1.5K, 2K 2.5K 3K, 5K, 10K, 15K, 20K, 30K, 40K Excitation Voltage: 10VDC - Maximum 15VDC Rated Output: 3.0 mviv Minimum Non-Linearity: <0.03% FSO (Full Scale Output) Hysteresis: <0.02% FSO Non-Repeatability: <0.01% FSO Zero Balance: 1.0% FSO Bridge Resistance: 350 ohms nominal Safe Overload: 150% of Rated Capacity Temperature Compensated Range: 0 - 150 deg. F FM Effect on Output: <0.0008% FSO/deg. F Effect on Zero: <0.0011% FSO/deg. F Finish: Electroless Nickel/Chrome Plated APPROVED TUATIONAL FERENCE ANDTEM NOS PLEASURES Figure Q1
