Compute the velocities of interest by using the formula approach (20 pt) and the grapical method [40pt]. Use the MATLAB

Post by answerhappygod »

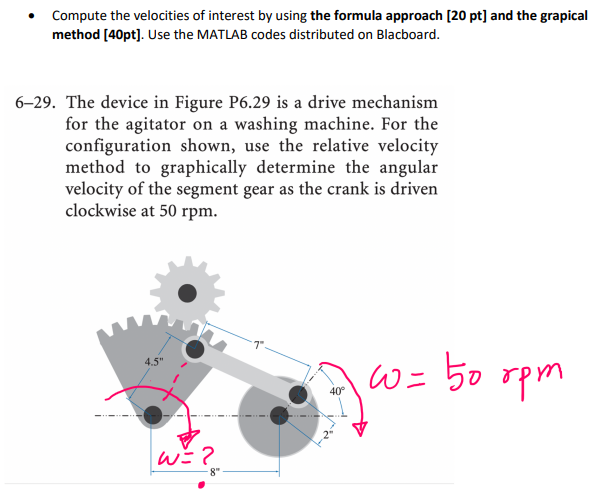

Compute The Velocities Of Interest By Using The Formula Approach 20 Pt And The Grapical Method 40pt Use The Matlab 1
Compute The Velocities Of Interest By Using The Formula Approach 20 Pt And The Grapical Method 40pt Use The Matlab 1 (107.7 KiB) Viewed 37 times
Compute the velocities of interest by using the formula approach (20 pt) and the grapical method [40pt]. Use the MATLAB codes distributed on Blacboard. 6–29. The device in Figure P6.29 is a drive mechanism for the agitator on a washing machine. For the configuration shown, use the relative velocity method to graphically determine the angular velocity of the segment gear as the crank is driven clockwise at 50 rpm. 4.5" w=50 rpm 40 w=2 -8"
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
