3. An eight-coil helical spring with mean diameter of 60 mm and wire diameter of 10 mm is subjected to a compressive loa

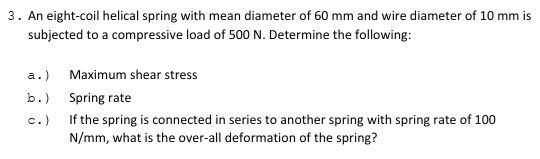

3. An eight-coil helical spring with mean diameter of 60 mm and wire diameter of 10 mm is subjected to a compressive load of 500 N. Determine the following: a.) Maximum shear stress b.) Spring rate c.) If the spring is connected in series to another spring with spring rate of 100 N/mm, what is the over-all deformation of the spring?
