Calculate and plot the engine speed for the vehicle speed using
the transmission gear ratio obtained in Problem 5.
(lambda1 = 0.5, lambda2 = 0.25 final
reduction ratio rf: 4, tire radius, Rt ,
shift point: engine 3000rpm). 5 problem results : 1st stage: 1, 2nd
stage: 1.5, 3rd stage: 1, 4th stage: 0.75
* Show graphs using Excel or MATLAB
Calculate And Plot The Engine Speed For The Vehicle Speed Using The Transmission Gear Ratio Obtained In Problem 5 Lamb 1 (11.52 KiB) Viewed 33 times
Example graph:

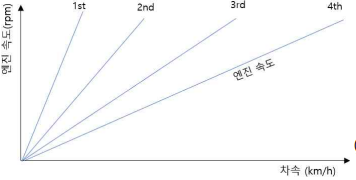

Calculate And Plot The Engine Speed For The Vehicle Speed Using The Transmission Gear Ratio Obtained In Problem 5 Lamb 2 (27.14 KiB) Viewed 33 times
Rtöre [m] V[km/h] = Input (rpm)* 271 60 * *(3.6), rTM final
1st 2nd 3rd 4th 엔진 속도(rpm) 엔진 속도 차속 (km/h)
