1. A weightless rigid bar is supported by a frictionless hinge and two linear springs as the following figure. Springs a

Post by answerhappygod »

1 A Weightless Rigid Bar Is Supported By A Frictionless Hinge And Two Linear Springs As The Following Figure Springs A 1
1 A Weightless Rigid Bar Is Supported By A Frictionless Hinge And Two Linear Springs As The Following Figure Springs A 1 (27.48 KiB) Viewed 28 times

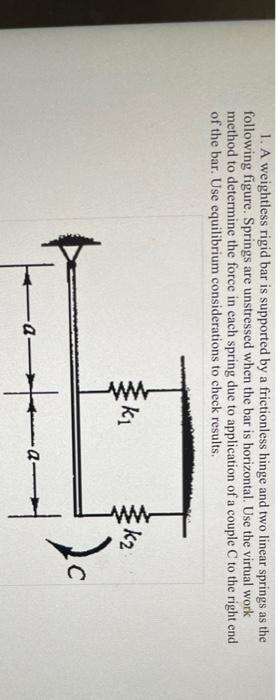

1. A weightless rigid bar is supported by a frictionless hinge and two linear springs as the following figure. Springs are unstressed when the bar is horizontal. Use the virtual work method to determine the force in each spring due to application of a couple C to the right end of the bar. Use equilibrium considerations to check results, ki K2 W с a- a-
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
