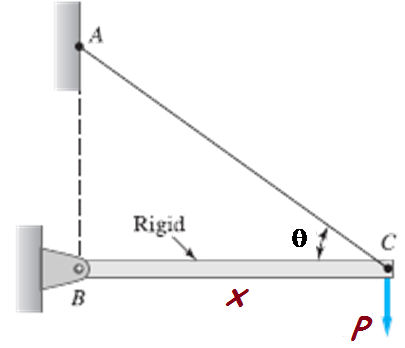

The rigid bar BC is supported by the steel rod AC of
cross-sectional area 0.31 in2. Find the vertical displacement (in
inches and absolute value) of point Ccaused by the 2888-lb load if
x = 8.7 ft and θ = 46.5ᵒ. Use E = 29159 ksi for steel. Note: Round
off the final answer to four decimal places.
The Rigid Bar Bc Is Supported By The Steel Rod Ac Of Cross Sectional Area 0 31 In2 Find The Vertical Displacement In I 1 (20.79 KiB) Viewed 27 times
А Rigid 0 с B В X Р
