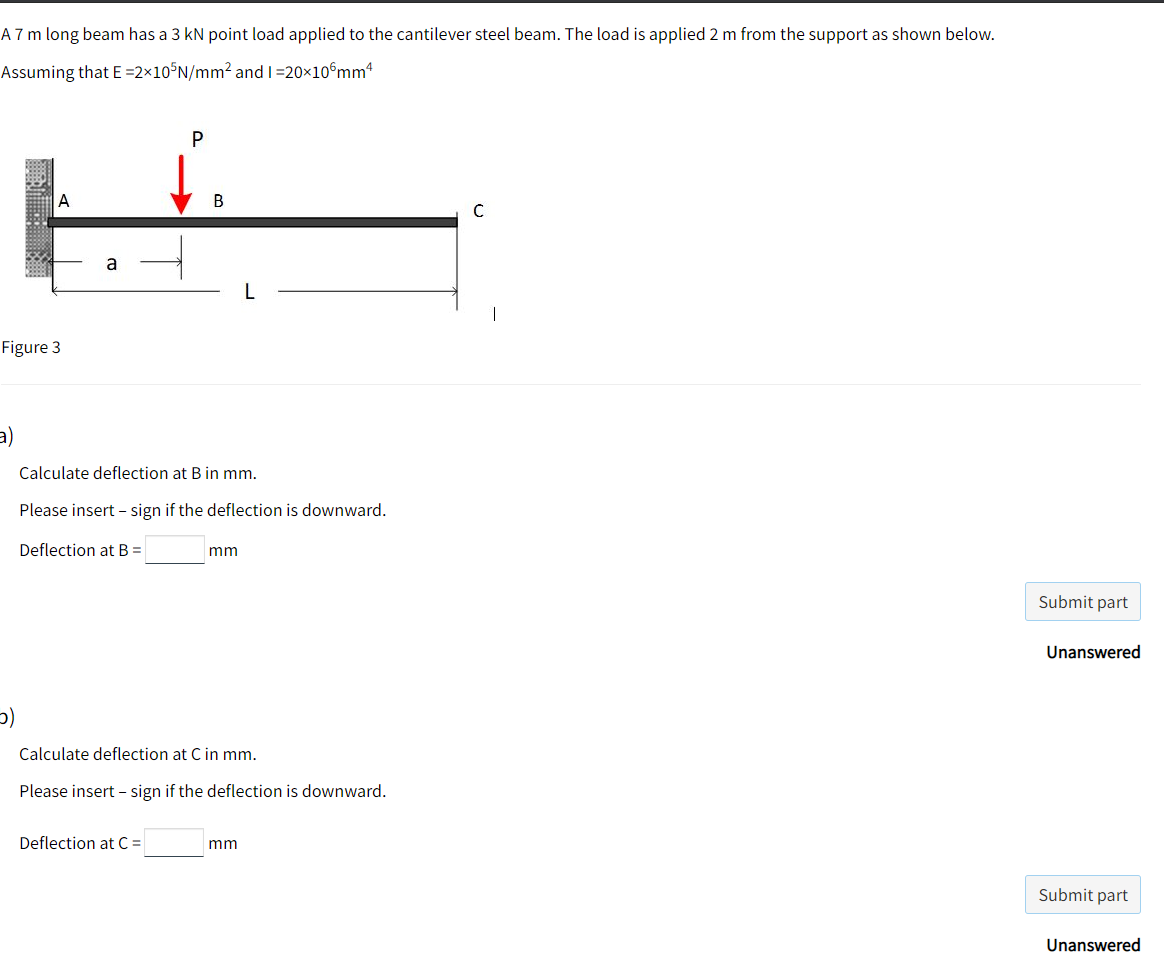

A 7 m long beam has a 3 kN point load applied to the cantilever steel beam. The load is applied 2 m from the support as shown below. Assuming that E =2x105N/mm² and I =20x106mm Р B C a L Figure 3 Calculate deflection at B in mm. Please insert - sign if the deflection is downward. Deflection at B= mm Submit part Unanswered Calculate deflection at C in mm. Please insert - sign if the deflection is downward. Deflection at C= mm Submit part Unanswered
C) Determine the maximum deflection in the terms of P and L El yn mar = Submit part Unanswered
