Problem 2 [15 points] Consider a shockwave with an angle of B= 25° that impinges on a wall at point p (as shown in the l

Post by answerhappygod »

Problem 2 15 Points Consider A Shockwave With An Angle Of B 25 That Impinges On A Wall At Point P As Shown In The L 1
Problem 2 15 Points Consider A Shockwave With An Angle Of B 25 That Impinges On A Wall At Point P As Shown In The L 1 (21.48 KiB) Viewed 15 times

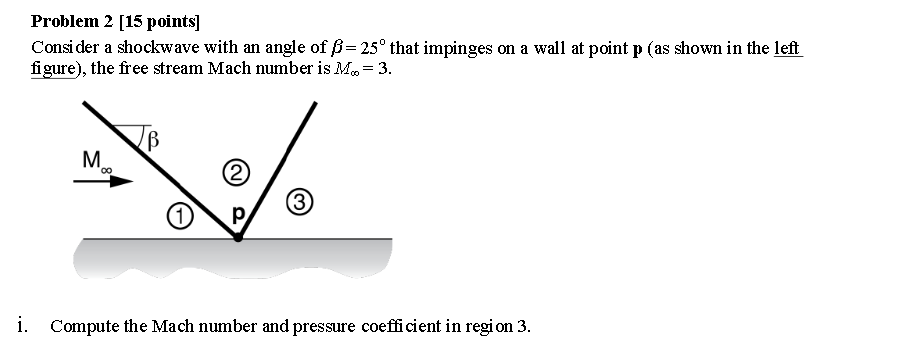

Problem 2 [15 points] Consider a shockwave with an angle of B= 25° that impinges on a wall at point p (as shown in the left figure), the free stream Mach number is Mo= 3. B M 2 3 p i. Compute the Mach number and pressure coefficient in region 3.
