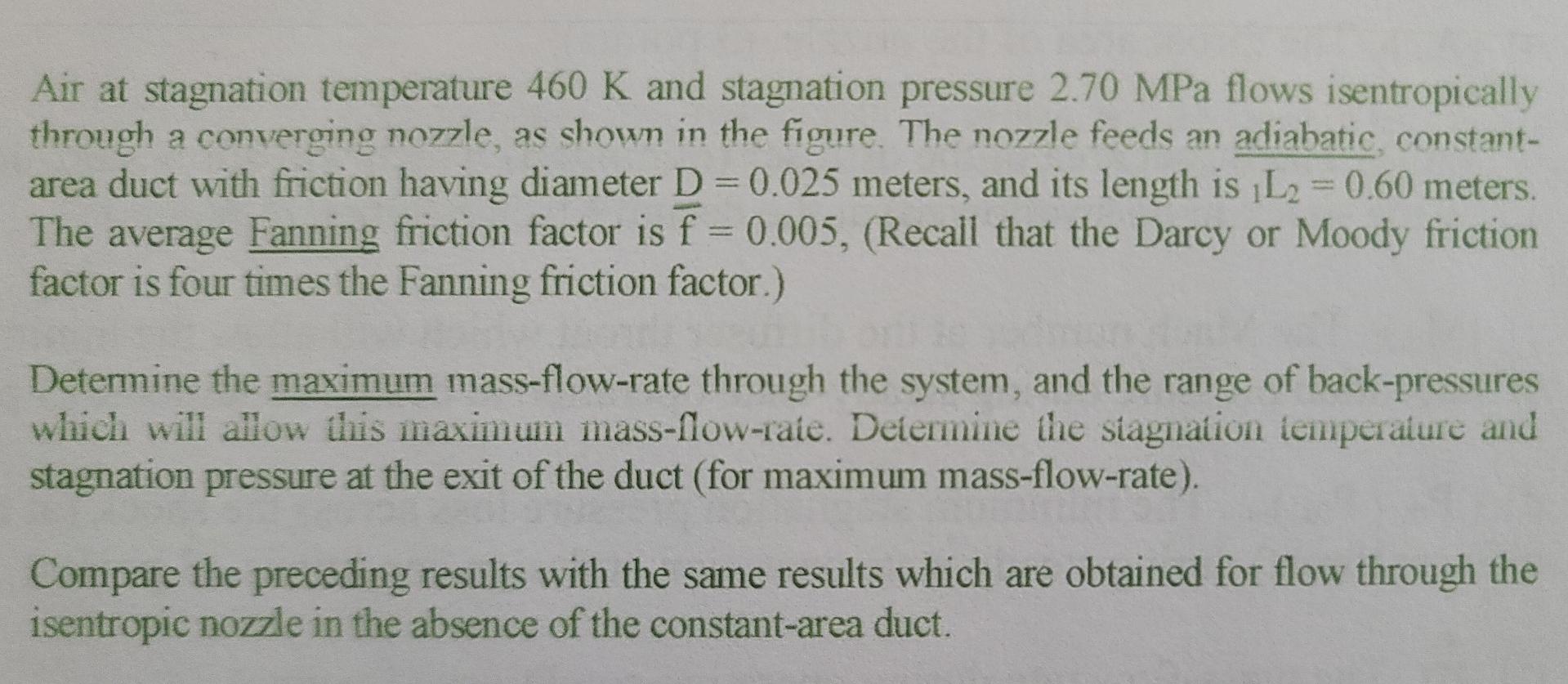

Air at stagnation temperature 460 K and stagnation pressure 2.70 MPa flows isentropically through a converging nozzle, as shown in the figure. The nozzle feeds an adiabatic, constant- area duct with friction having diameter D = 0.025 meters, and its length is L2 = 0.60 meters. The average Fanning friction factor is f = 0.005, (Recall that the Darcy or Moody friction factor is four times the Fanning friction factor.) Determine the maximum mass-flow-rate through the system, and the range of back-pressures which will allow this maximum mass-flow-rate. Determine the stagnation temperature and stagnation pressure at the exit of the duct (for maximum mass-flow-rate). Compare the preceding results with the same results which are obtained for flow through the isentropic nozzle in the absence of the constant-area duct.
