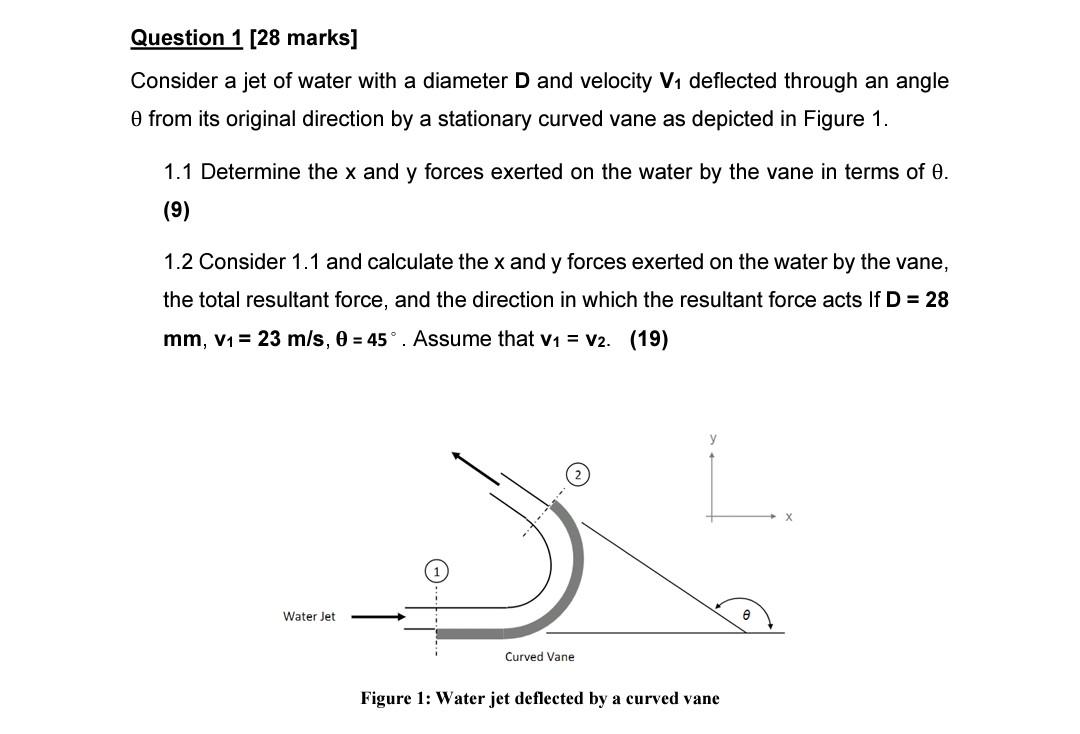

Question 1 [28 marks] Consider a jet of water with a diameter D and velocity V1 deflected through an angle o from its original direction by a stationary curved vane as depicted in Figure 1. 1.1 Determine the x and y forces exerted on the water by the vane in terms of 0. (9) 1.2 Consider 1.1 and calculate the x and y forces exerted on the water by the vane, the total resultant force, and the direction in which the resultant force acts If D = 28 mm, V1 = 23 m/s, 0 = 45°. Assume that V1 = V2. (19) Water Jet Curved Vane Figure 1: Water jet deflected by a curved vane
