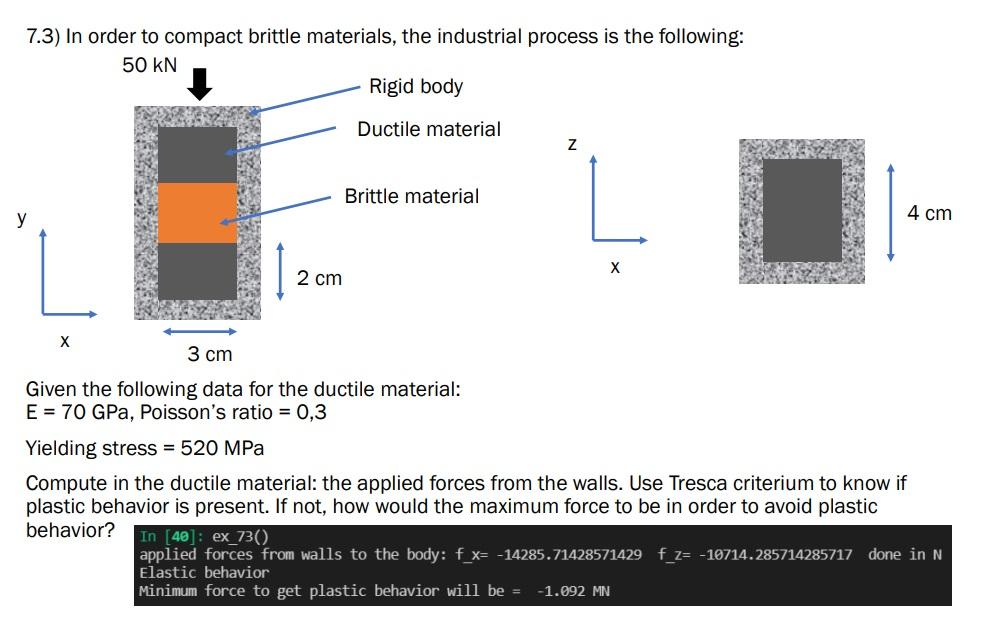

7.3) In order to compact brittle materials, the industrial process is the following: 50 KN Rigid body Ductile material Z

[answerhappygod]

7 3 In Order To Compact Brittle Materials The Industrial Process Is The Following 50 Kn Rigid Body Ductile Material Z 1 (74.11 KiB) Viewed 14 times

7.3) In order to compact brittle materials, the industrial process is the following: 50 KN Rigid body Ductile material Z Brittle material у 1 4 cm X 2 cm X 3 cm Given the following data for the ductile material: E = 70 GPa, Poisson's ratio = 0,3 Yielding stress = 520 MPa Compute in the ductile material: the applied forces from the walls. Use Tresca criterium to know if plastic behavior is present. If not, how would the maximum force to be in order to avoid plastic behavior? In [40] : ex_730) applied forces from walls to the body: f_x= -14285.71428571429 f_z= -10714.285714285717 done in N Elastic behavior Minimum force to get plastic behavior will be = 1.092 MN
