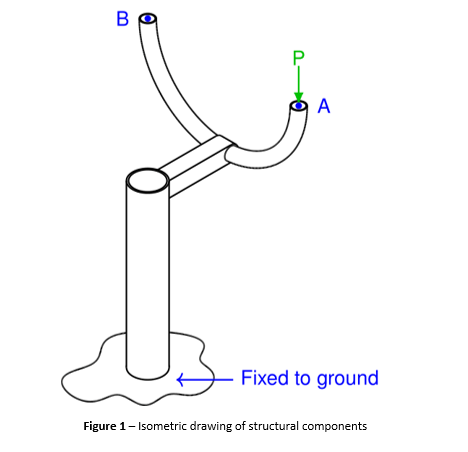

B A 2 Fixed to ground Figure 1 - Isometric drawing of structural components

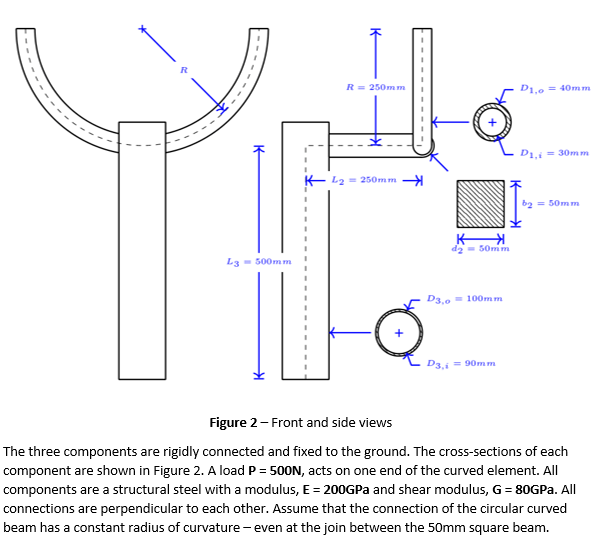

R = 250mm Do = 40mm D.1 = 30mm K L2 = 250mm 6250mm K में d250mm L3 - 500mm D3,0 = 100mm 1 D3. = 90mm Figure 2 - Front and side views The three components are rigidly connected and fixed to the ground. The cross-sections of each component are shown in Figure 2. A load P = 500N, acts on one end of the curved element. All components are a structural steel with a modulus, E = 200GPa and shear modulus, G = 80GPa. All connections are perpendicular to each other. Assume that the connection of the circular curved beam has a constant radius of curvature - even at the join between the 50mm square beam.
