Question 3 (10 Marks in Total) b 24 30 F 30 F The plate, of thickness t, shown in the figure above has a number of force

Post by answerhappygod »

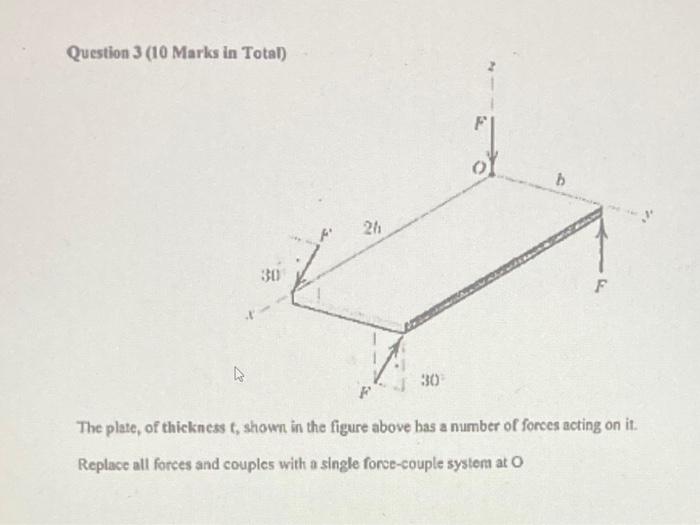

Question 3 10 Marks In Total B 24 30 F 30 F The Plate Of Thickness T Shown In The Figure Above Has A Number Of Force 1
Question 3 10 Marks In Total B 24 30 F 30 F The Plate Of Thickness T Shown In The Figure Above Has A Number Of Force 1 (26.73 KiB) Viewed 28 times
Question 3 (10 Marks in Total) b 24 30 F 30 F The plate, of thickness t, shown in the figure above has a number of forces acting on it. Replace all forces and couples with a single force-couple system at O
