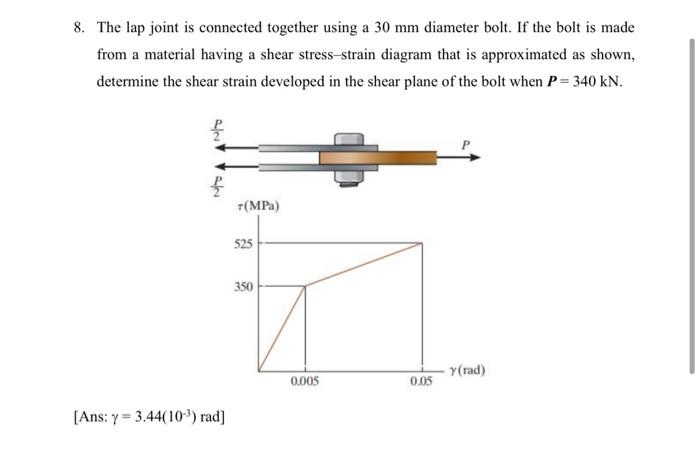

8. The lap joint is connected together using a 30 mm diameter bolt. If the bolt is made from a material having a shear stress-strain diagram that is approximated as shown, determine the shear strain developed in the shear plane of the bolt when P= 340 kN. 몰 T(MPa) 525 350 Y(rad) 0.005 0.05 [Ans: Y = 3.44(10%) rad]

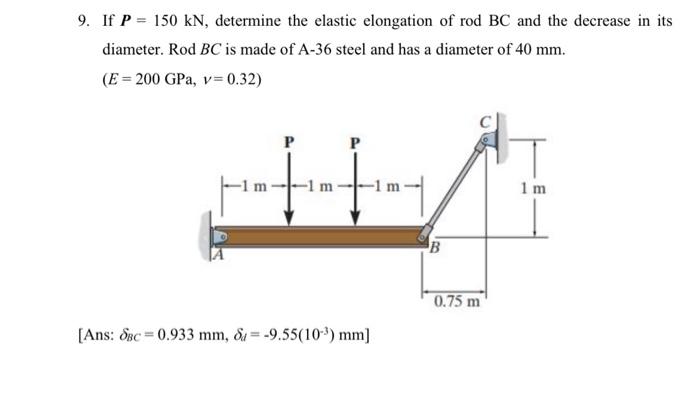

9. If P = 150 kN, determine the elastic elongation of rod BC and the decrease in its diameter. Rod BC is made of A-36 steel and has a diameter of 40 mm. (E = 200 GPa, v=0.32) P P -1 m 1 m B 0.75 m [Ans: dec = 0.933 mm, 81 = -9.55(10-) mm)
