= Water Flows from a tank through a piping system and to a pump and finally flows out to the atmosphere as shown in the

Post by answerhappygod »

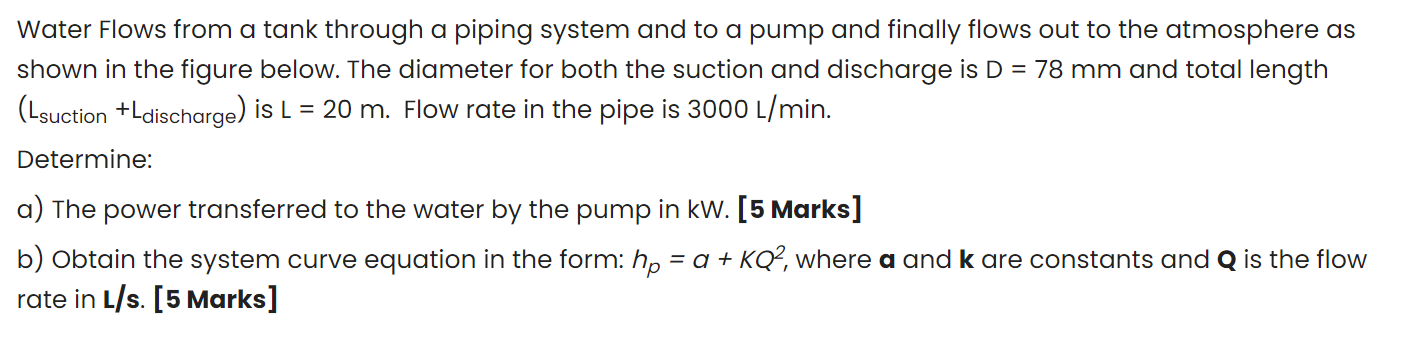

Water Flows From A Tank Through A Piping System And To A Pump And Finally Flows Out To The Atmosphere As Shown In The 1
Water Flows From A Tank Through A Piping System And To A Pump And Finally Flows Out To The Atmosphere As Shown In The 1 (53.21 KiB) Viewed 34 times
= Water Flows from a tank through a piping system and to a pump and finally flows out to the atmosphere as shown in the figure below. The diameter for both the suction and discharge is D = 78 mm and total length (Lsuction +Ldischarge) is L = 20 m. Flow rate in the pipe is 3000 L/min. Determine: a) The power transferred to the water by the pump in kw. [5 Marks] b) Obtain the system curve equation in the form: hp = a + KQ2, where a and k are constants and Q is the flow rate in l/s. [5 Marks] =
