1 (a) In Figure Q1, the 25 kg mass (m) is suspended by a combination of springs, where kz=5 kN/m, K2=5 kN/m, kz=10 kN/m

[answerhappygod]

1 A In Figure Q1 The 25 Kg Mass M Is Suspended By A Combination Of Springs Where Kz 5 Kn M K2 5 Kn M Kz 10 Kn M 1 (49.31 KiB) Viewed 41 times

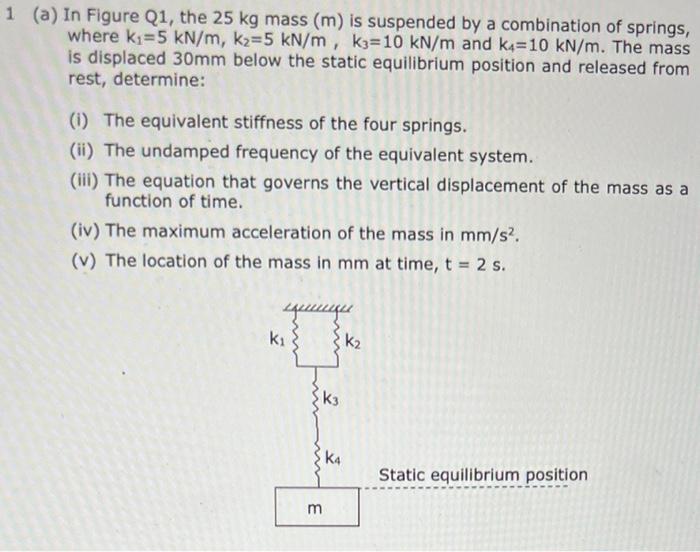

1 (a) In Figure Q1, the 25 kg mass (m) is suspended by a combination of springs, where kz=5 kN/m, K2=5 kN/m, kz=10 kN/m and kx=10 kN/m. The mass is displaced 30mm below the static equilibrium position and released from rest, determine: (i) The equivalent stiffness of the four springs. (ii) The undamped frequency of the equivalent system. (iii) The equation that governs the vertical displacement of the mass as a function of time. (iv) The maximum acceleration of the mass in mm/s2. (v) The location of the mass in mm at time, t = 2 s. ki Σ 'kz ki ka Static equilibrium position m
